Hyundai Creta: Storage compartment / Center console storage

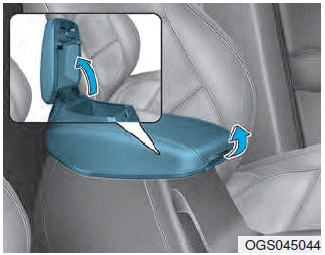

To open the center console storage, pull up the lever.
Storage compartment
WARNING
Flammable materials
Do not store cigarette lighters,
propane cylinders, or other flammable/
explosive materials in the
vehicle. These items may catch
fire and/or explode if the vehic ...
Glove box
To open the glove box, pull the lever
and the glove box will automatically
open. Close the glove box after use.
WARNING
ALWAYS close the glove box door
after use.
An open glove box door can ...
