Hyundai Creta: Clutch System / Clutch Master Cylinder

Hyundai Creta GS 2014-2026 Service Manual / Clutch System / Clutch System / Clutch Master Cylinder

Components and components location

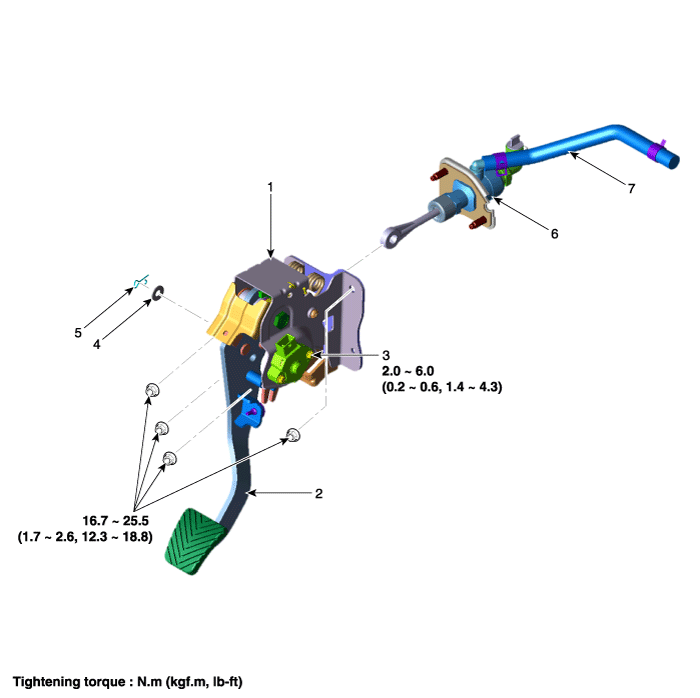

Components

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Washer

5. Snap pin
6. Master cylinder
7. Reservoir hose

Repair procedures

Removal

1.	Remove the crash pad lower pannel. (Refer to Body - "Crash Pad")

2.	Disconnect the push rod from the clutch pedal by removing the snap pin (A) and washer (B).

Remove the clutch pedal mounting nuts (C-3ea).

Tightening torque :

16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 Ib-ft)

Disconnect the reservoir hose (A) and clutch tube (B) after removing the pin (C).

•	Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water.

[M6CF1]

[M6CF3-1]

5.	Remove the master cylinder assembly (A).

Installation

1.	Install in the reverse order of removal.

2.	Perform bleeding air procedure in clutch release cylinder after pouring the brake fluid. (Refer to Clutch Release Cylinder - "Adjustment")
