Hyundai Creta: Cylinder Head Assembly / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Components and components location

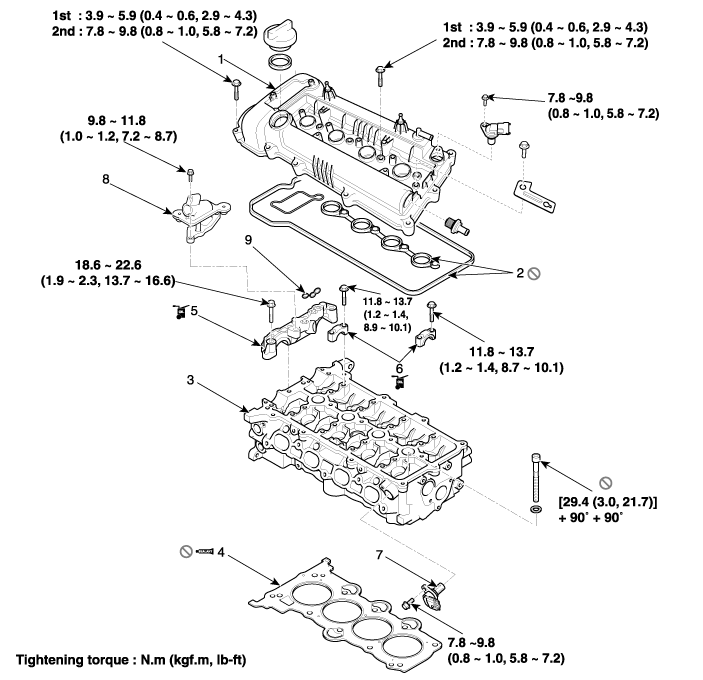

Components

1. Cylinder head cover
2. Cylinder head cover gasket
3. Cylinder head assembly
4. Cylinder head gasket

5. Camshaft front bearing cap
6. Camshaft bearing cap
7. Camshaft position sensor
8. OCV (oil control valve)
9. O-ring

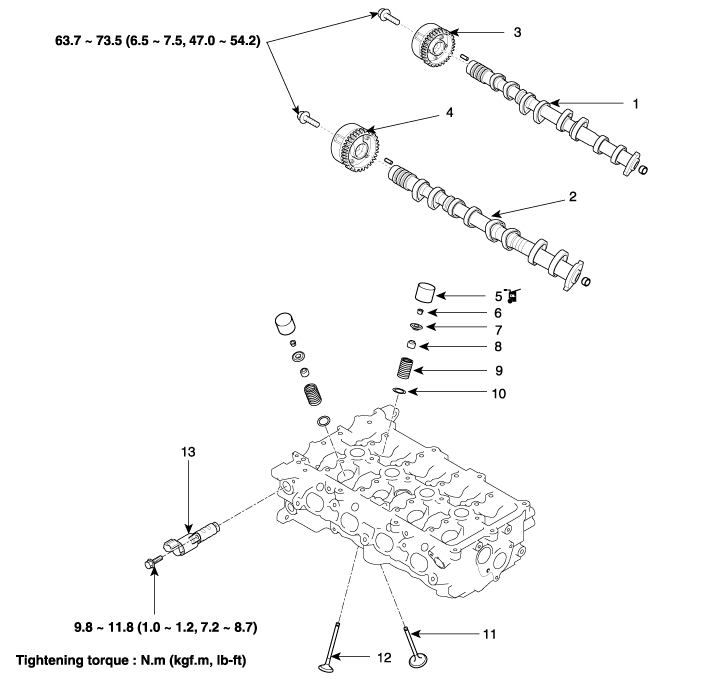

1. Exhaust camshaft
2. Intake camshaft
3. Exhaust camshaft sproket
4. CVVT assembly
5. Mechanical Lash Adjuster(MLA)
6. Retainer lock
7. Retainer

8. Valve stem seal
9. Valve spring
10. Valve spring seat
11. Intake valve
12. Exhaust valve
13. Oil Control Valve(OCV)
