Hyundai Creta GS 2014-2026 Service Manual / Emission Control System / General Information / Components and components location
| Components Location |

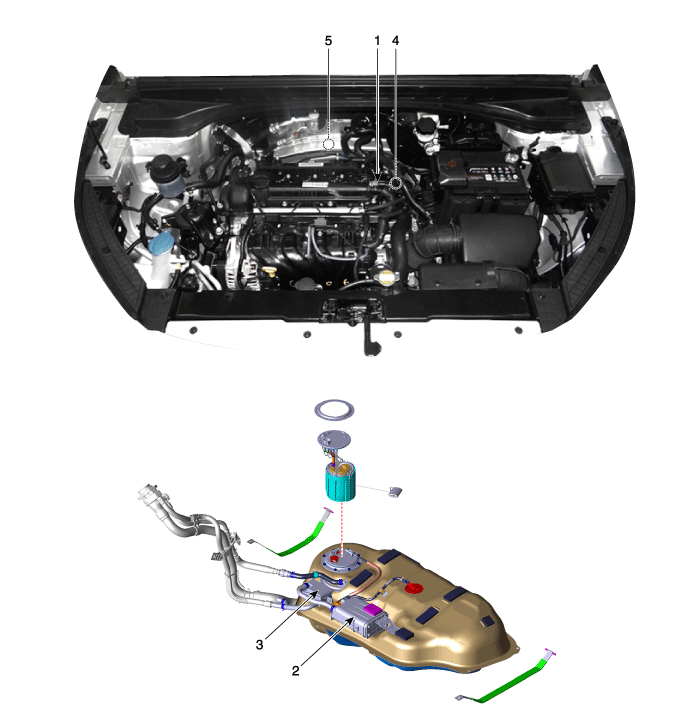

| 1. PCV valve 2. Canister 3. Fuel tank air filter |
4. Purge control solenoid valve
(PCSV) 5. Catalytic converter (WCC/UCC) |
|
1. PCV valve |
2. Canister |
|
|
|
|
3. Fuel tank air filter |
4. Purge control solenoid valve (PCSV) |
|
|
|
|
5. Catalytic converter (WCC) |
5. Catalytic converter (UCC) |
|
|
|
Schematic diagrams
Schematic Diagram
...
Other information:
Hyundai Creta GS 2014-2026 Service Manual: Components and components location
Components
1. Recliner lever
2. Front seat outer shield cover
3. Front seat cushion frame assembly
4. Front seat cushion cover
5. Front seat shield inner cover
6. Front seat cushion antinoise cover
7. Front seat cushion pad
8. Front seat cushion ...
Hyundai Creta GS 2014-2026 Service Manual: Schematic diagrams
Schematic Diagram
Canister
Canister is filled with charcoal and absorbs evaporated vapor in fuel tank.
The gathered fuel vapor in canister is drawn into the intake manifold by the
ECM/PCM when appropriate conditions are set.
Purge Control Solenoid Valve (PCSV)
...
