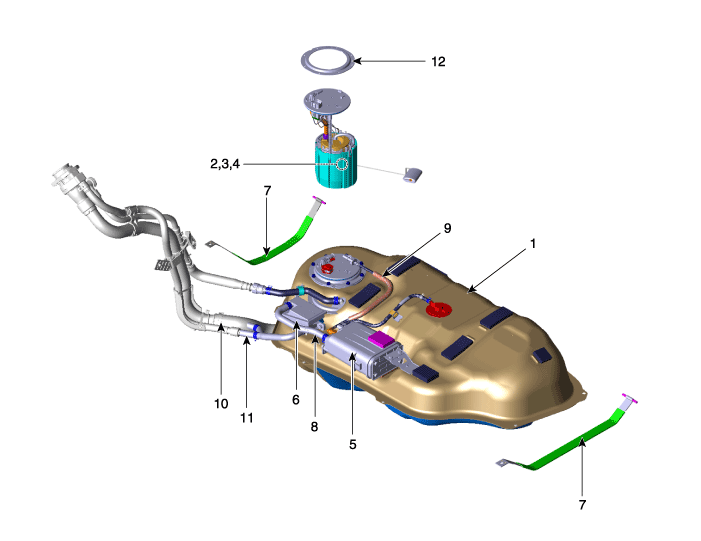

Components Location

1. Fuel Tank
2. Fuel Pump
3. Fuel Filter
4. Fuel Pressure Regulator
5. Canister
6. Fuel Tank Air Filter

7. Fuel Tank Band
8. Ventilation Hose
9. Vapor Tube
10. Fuel Filler Hose
11. Leveling Hose
12. Fuel Pump Plate Cover

Repair procedures

Fuel Pressure Test 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line") ...
