Components Location

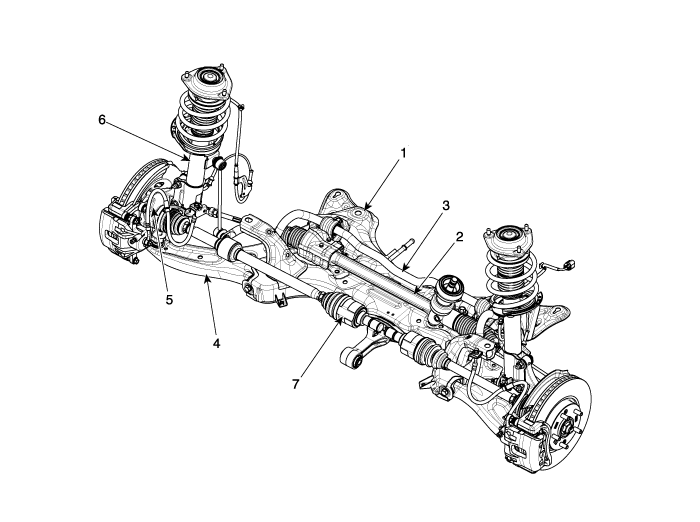

[LHD]

1. Sub frame
2. Steering gearbox
3. Front stabilizer bar
4. Front lower arm

5. Front axle
6. Front strut assembly
7. Drive shaft

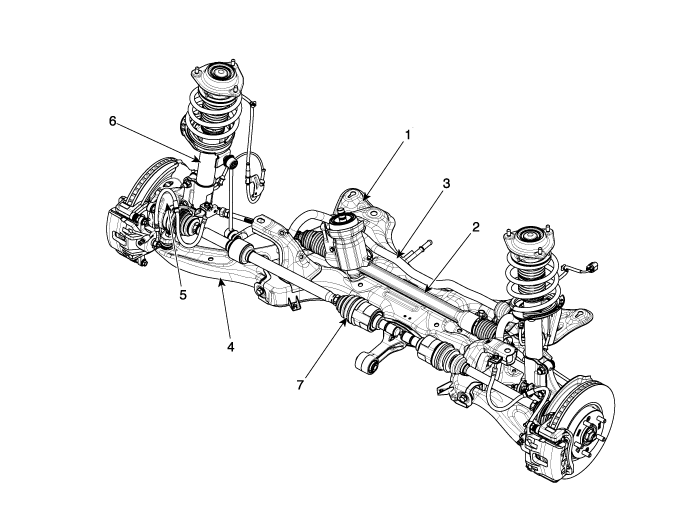

[RHD]

1. Sub frame
2. Steering gearbox
3. Front stabilizer bar
4. Front lower arm

5. Front axle
6. Front strut assembly
7. Drive shaft
