Hyundai Creta: Front Door / Components and components location
Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

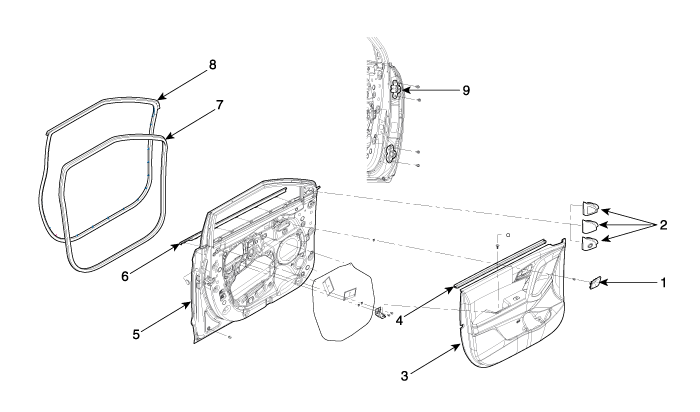

| Components |
| 1. Front door inside handle hole
cap 2. Front door quadrant inner cover 3. Front door trim 4. Front door belt inside weatherstrip 5. Front door panel |
6. Front door belt outside weatherstrip 7. Front door body side weatherstrip 8. Front door side weatherstrip 9. Front door hinge |
