Hyundai Creta: Roof Trim / Components and components location
Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Roof Trim / Components and components location

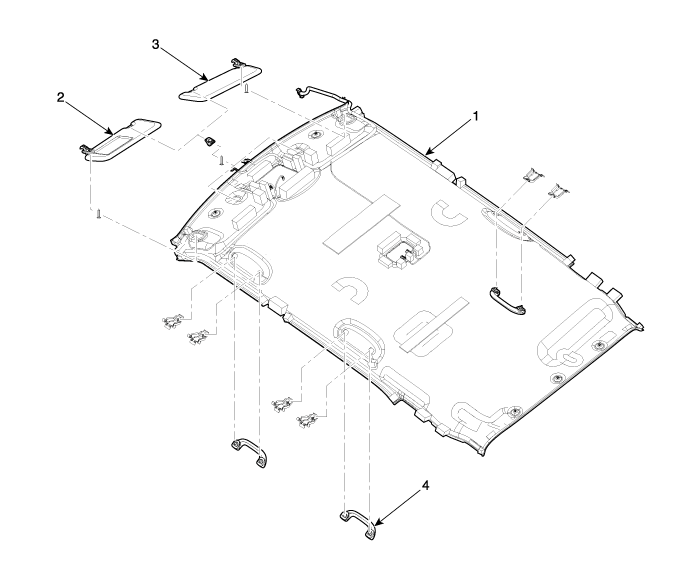

| Components |
| 1. Roof trim 2. Sunvisor [LH] |
3. Sunvisor [RH] 4. Assist handle |
Roof Trim
...
Sunvisor
Components and components location
Component Location
1. Sunvisor
2. Retainer
Repair procedures
Replacement
...
