Components and components location

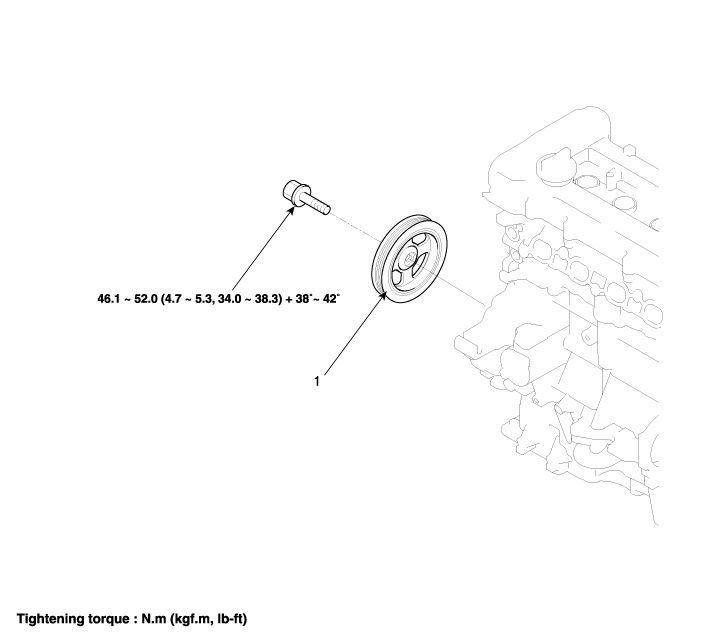

Components

1. Crankshaft damper pulley

Repair procedures

Removal and Installation

1.	Remove the drive belt. (Refer to Timing System - "Dreve Belt")

2.	Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")

3.	Remove the RH front wheel. (Refer to Suspension System - "Wheel")

Remove the crankshaft bolt (B) and crankshaft pulley (A).

Tightening torque :

46.1 ~ 52.0 N.m (4.7 ~ 5.3 kgf.m, 34.0 ~ 38.3 lb-ft) + 38° ~ 42°

There are two methods to hold the ring gear when installing or removing the crankshaft damper pulley.

•	Install the SST (09231-3N100 / 09231-2B100) to hold the ring gear after removing the starter.

•	Install the SST (09231-2W100 / 09231-3D100) to hold the ring gear after removing the dust cover.

Remove the air guide bracket (A).

Tightening torque :

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

2)	Remove the dust cover (A) and unfasten the transaxle mounting bolt (B).

3)	Adjust the length of the holder nuts (A) so that the front plate of the holder (B) puts in the ring gear (C) teeth.

4)	Adjust the angle of the links (D), and fasten the bolt 70mm(2.7559in) in the original mounted hole.

5)	Tighten the bolts and nuts of the holder and links securely.

5.	Install in the reverse order of removal. When installing the pulley, the groove on the pulley should be positioned outside.

Inspection

Check the crankshaft damper pulley for vibration in rotation, oil dust deposit of V-ribbed part. Replace if necessary.
