Hyundai Creta: Engine Control System / Crankshaft Position Sensor (CKPS)

Description and operation

Description
Crankshaft Position Sensor (CKPS) detects the crankshaft position and is one of the most important sensors of the engine control system. If there is no CKPS signal input, fuel is not supplied.That is, vehicle can't run without CKPS signal. This sensor is installed on the cylinder block or the transaxle housing and generates alternating current by magnetic flux field which is made by the sensor and the target wheel when engine runs.
The target wheel consists of 58 slots and 2 missing slots on 360 degrees CA (Crank Angle).

Specifications

Specification
Item
Specification
Coil Resistance (Ω)
774 ~ 946 [20°C (68°F)]

Troubleshooting

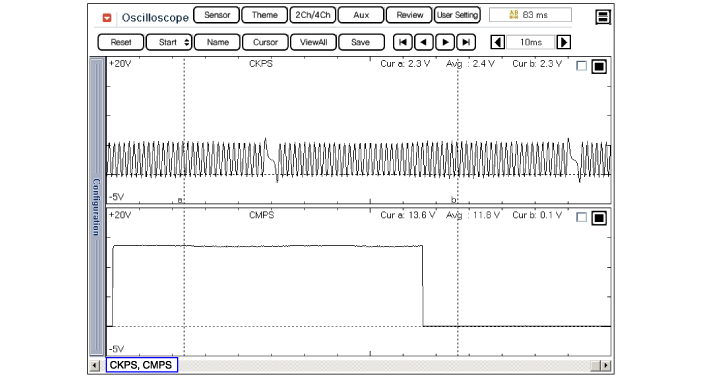

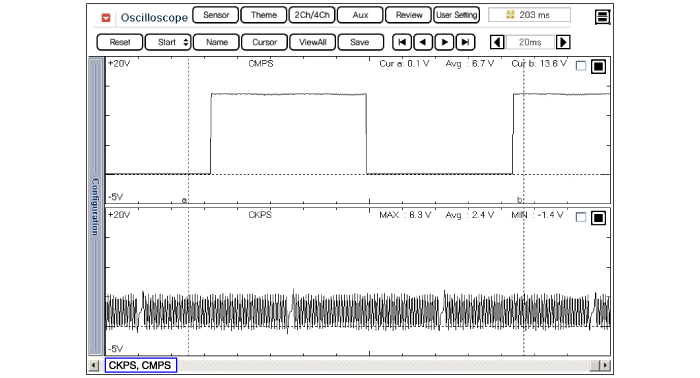

Waveform

Schematic diagrams

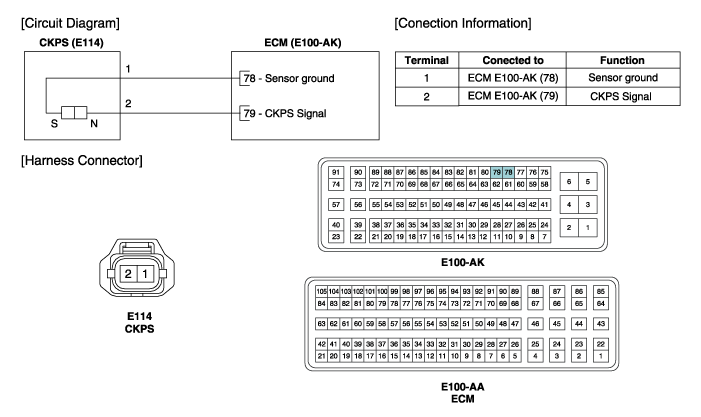

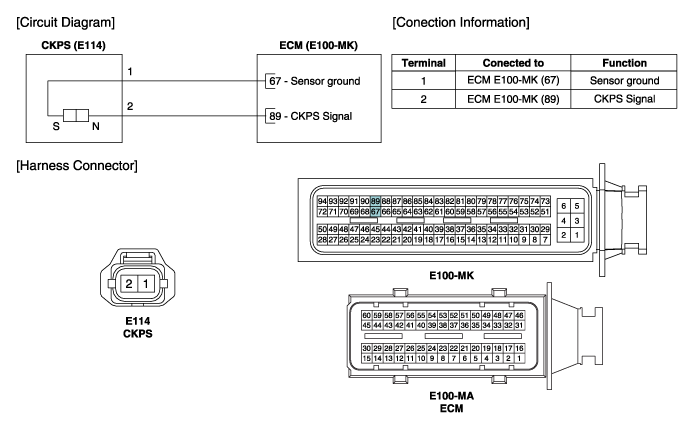

Circuit Diagram
(M/T)

(A/T)

Repair procedures

Inspection
1.
Check signal waveform of CKPS and CMPS using a GDS.
Specification : Refer to "Waveform"
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Disconnect the crankshaft position sensor connector (A).
3.
Remove the mounting bolt (B), and then remove the crankshaft position sensor.

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

Apply the engine oil to the O-ring.

Insert the sensor in the installation hole and be careful not to damage when installation.

Be careful not to damage the sensor housing and the connector.
Be careful not to damage the O-ring.
1.
Install in the reverse order of removal.
Crankshaft position sensor mounting bolt :
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
