Hyundai Creta: Airbag Module / Curtain Airbag (CAB) Module
Description and operation
Curtain airbags are installed inside the headliner (LH and RH) and protect the
driver and passenger from danger when side crash occurs. The SRSCM determines
deployment of curtain airbag by using side impact sensor (SIS) signal.
| • |
Never attempt to measure the circuit resistance of the airbag
module even if you are using the specified tester. If the circuit
resistance is measured with a tester, accidental airbag deployment
will result in serious personal injury.
|
|

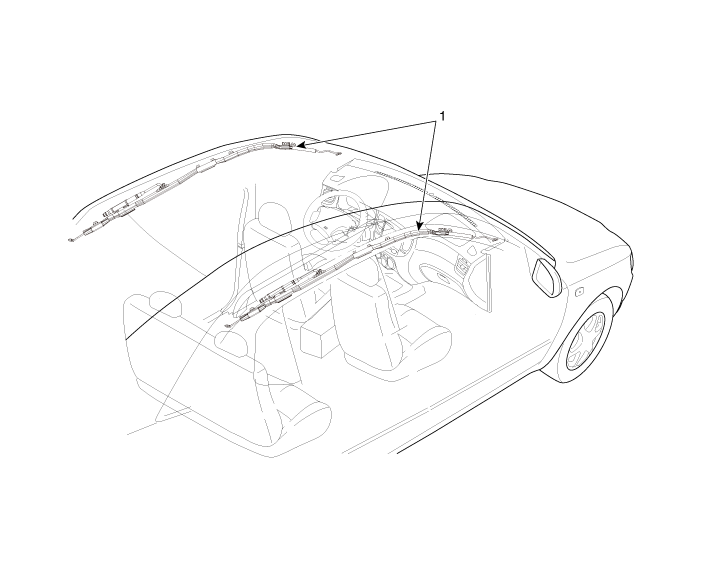

Components and components location
Repair procedures
| 1. |
Disconnect the battery negative cable and wait for at least 3 minutes
before beginning work.
|
| 2. |
Remove the roof trim.
(Refer to Body - "Roof Trim Assembly")
|
| 3. |
Disconnect the curtain airbag harness connector (A).
|
| 4. |
After loosening the mounting bolts and nuts remove the curtain airbag.
|
| 1. |
Remove the ignition key from the vehicle.
|
| 2. |
Disconnect the battery negative cable and wait for at least three minutes.
|
| 3. |
Tighten the curtain airbag mounting bolts and nuts.
|
Tightening torque :
6.9 ~ 8.8 N.m (0.7 ~ 0.9 kgf.m, 5.1 ~ 6.5 lb-ft)
|
| •
|
Never twist the airbag module during installation. If
the airbag module is twisted, the airbag module may
operate abnormally.
|
|
|
| 4. |
Connect the curtain airbag connector.
|
| 5. |
Install the roof trim.
(Refer to Body - "Roof Trim Assembly")
|
| 6. |
Reconnect the battery negative cable.
|
| 7. |
After installing the curtain airbag (CAB), confirm proper system operation:
| • |
Turn the ignition switch ON; the SRS indicator light should
be turned on for about six seconds and then go off.
|
|
