Hyundai Creta: Front Seat Belt / Front Seat Belt Pretensioner

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Pretensioner

Components and components location

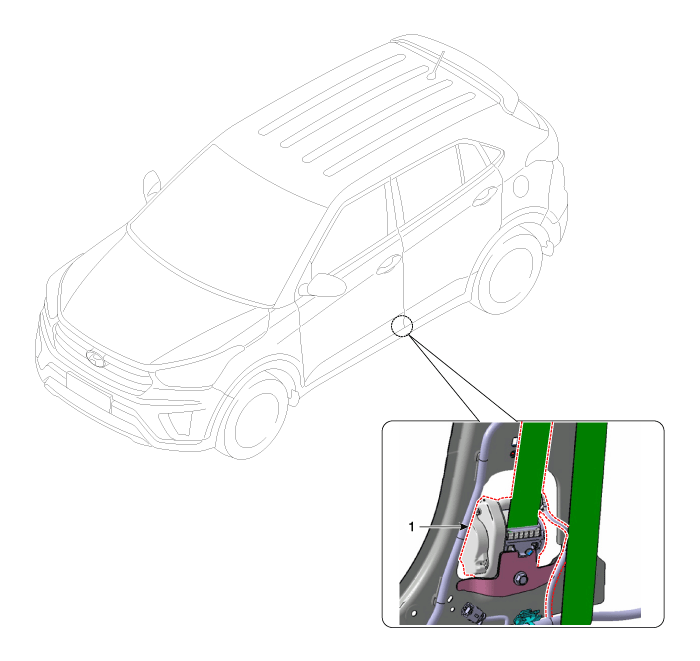

Component Location

1. Front seat belt pretensioner


Repair procedures

Replacement

•
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
3.
After loosening the mounting bolt, then remove the front seat belt upper anchor (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

4.
Disconnect the connector (A) after loosening the mounting bolt and removing the front safety belt retractor (B).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)
[India - General : Standard]

[General : Option]

5.
To install, reverse the removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips.
