Inspecting the Wheel Valve Stems
Check the valve stems for holes, cracks, or cuts that could permit air leakage.
Tire Rotation
WARNING: If the tire label shows different tire pressures for the front and rear tires and the vehicle has a tire pressure monitoring system, then you need to update the settings for the system sensors. Always perform the system reset procedure after tire rotation. If you do not reset the system, it may not provide a low tire pressure warning when necessary.
Rotating your tires at the recommended interval will help your tires wear more evenly, providing better tire performance and longer tire life.
Note: If your tires show any uneven wear have the alignment checked by an authorized dealer before rotating tires.
Note: If you have a dissimilar spare wheel and tire assembly, it is intended for temporary use only and should not be used in a tire rotation.
Note: After having your tires rotated, inflation pressure must be checked and adjusted to the vehicle requirements.

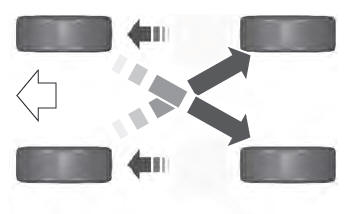

Tire Rotation Diagram
Follow the diagram indicating the correct tire locations for rotating the tires.

Inspecting the Tire for Wear. Inspecting the Tire for DamageHyundai Creta GS 2014-2026 Service Manual: Components and components location
Components Location
1. Automatic
transaxle
2. Oil filter
3. Mechanical oil pump
...
Hyundai Creta GS 2014-2026 Service Manual: Line Pressure Control Solenoid Valve
Description and operation
Description
•
Line pressure control solenoid valve is attached to the valve body.
•
This variable force solenoid valve indirectly controls the hydraulic
pressure inside the line pressure.
...
