Hyundai Creta: Indicators And Gauges / Instrument Cluster

Hyundai Creta GS 2014-2025 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster

Components and components location

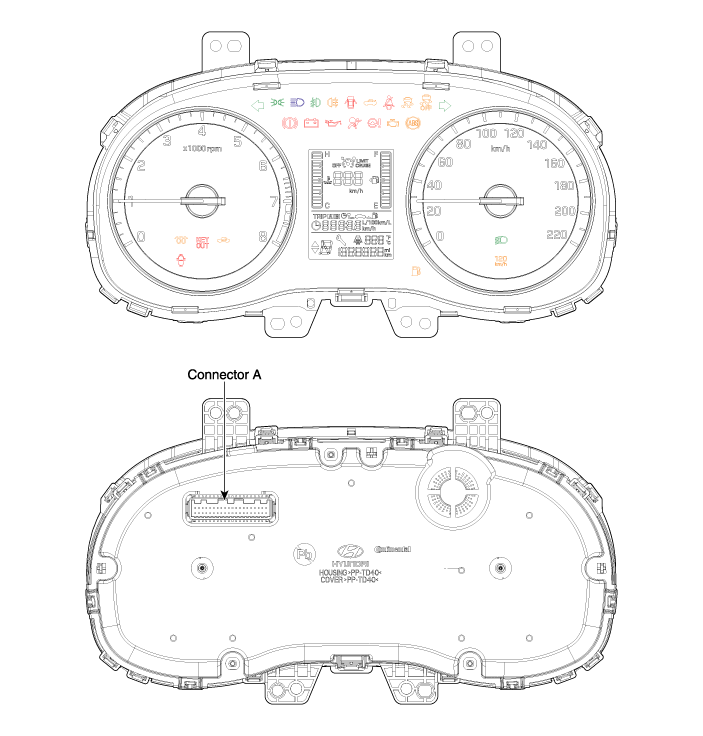

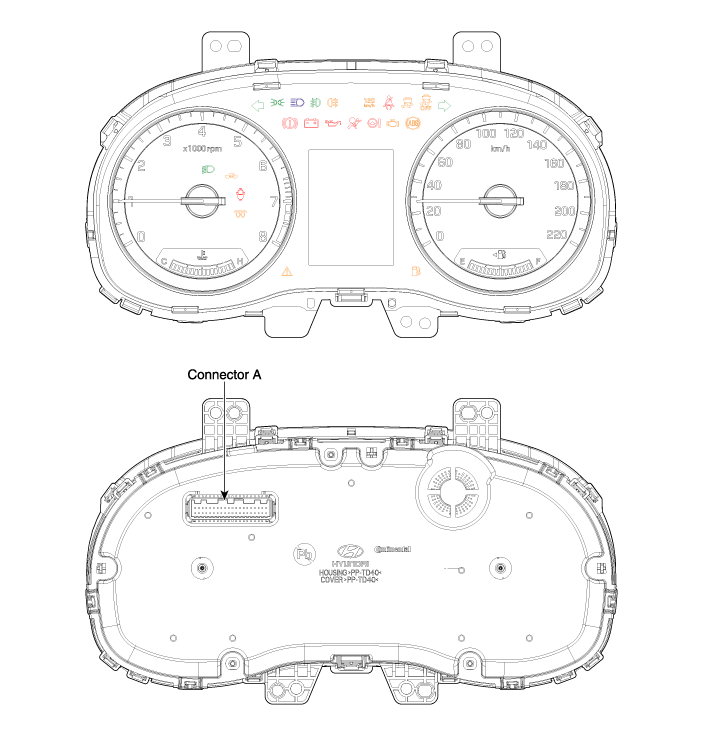

Components
[Standard]

[Supervision]

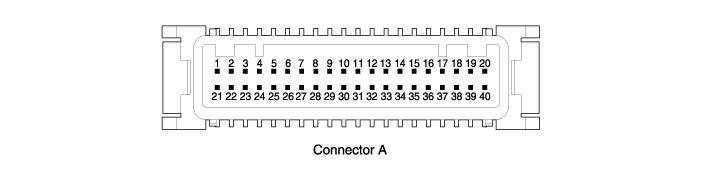

Connector Pin Information
No
Description
No
Description
1
 GND
 21
 Trip switch (-)_input
2
 Illumination (-)_output
 22
 Trip switch1 (+)_input
3
 Rheostat down switch
 23
 -
4
 Rheostat up switch
 24
 AT (P) output
5
 Alternator_input
 25
 AT (R) output
6
 -
 26
 AT (N) output
7
 -
 27
 AT (D) output
8
 Oil Pressure switch_input
 28
 AT (S) output
9
 Speed_output
 29
 B_CAN (Low)
10
 -
 30
 B_CAN (High)
11
 Alternator_output
 31
 -
12
 Vehicle speed_input
 32
 C_CAN (High)
13
 Air Bag (+)_input
 33
 C_CAN (Low)
14
 Fuelsender (+)_input
 34
 -
15
 Water seperator (+)_input
 35
 Detent_ouput
16
 Fuelsender (-)_input
 36
 -
17
 -
 37
 GND_signal
18
 -
 38
 -
19
 -
 39
 IGN 1
20
 Tail lamp_input
 40
 Battery (+)

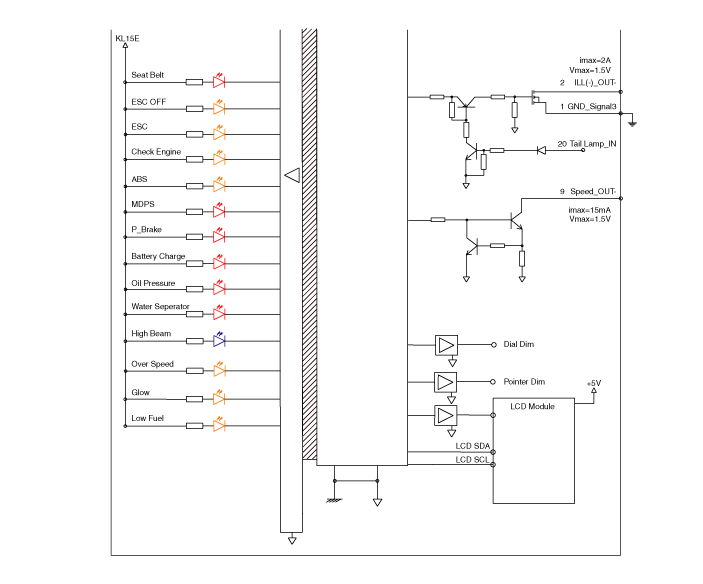

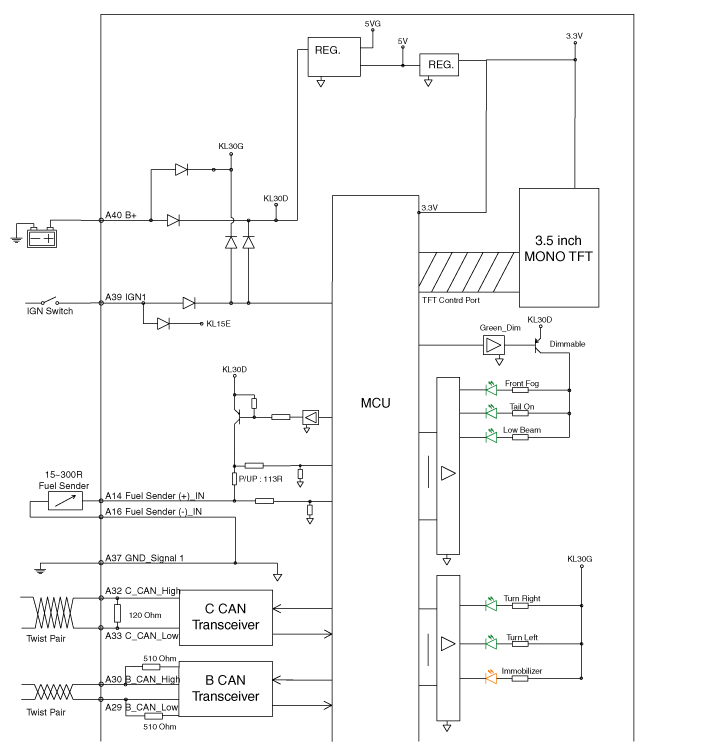

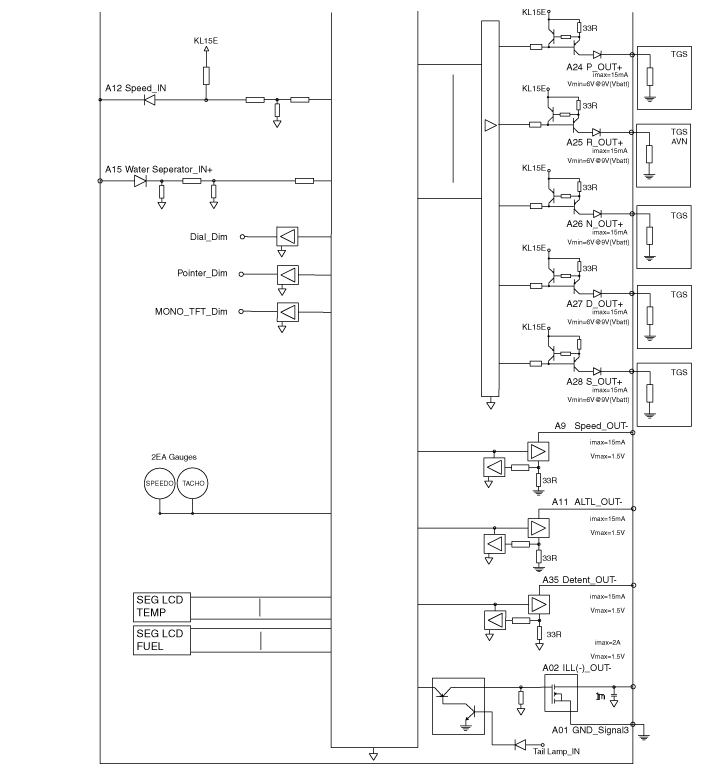

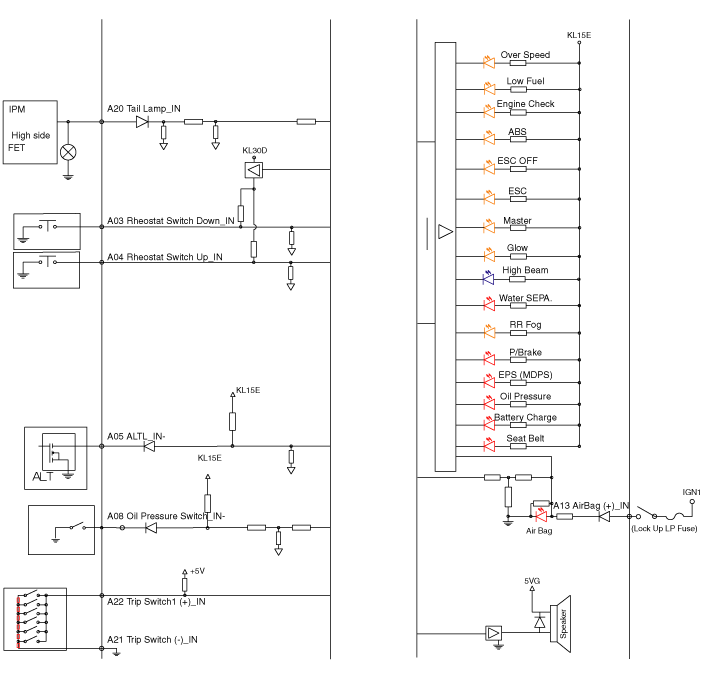

Schematic diagrams

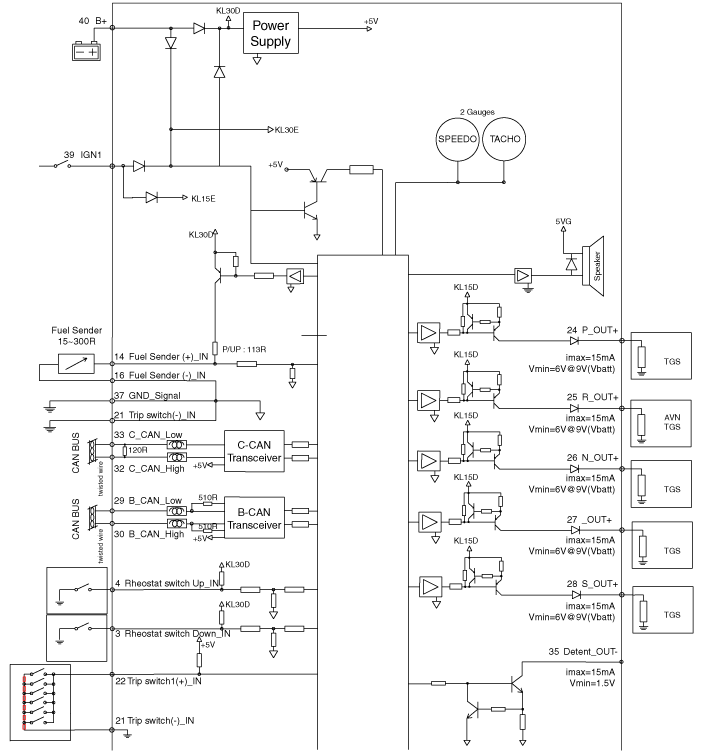

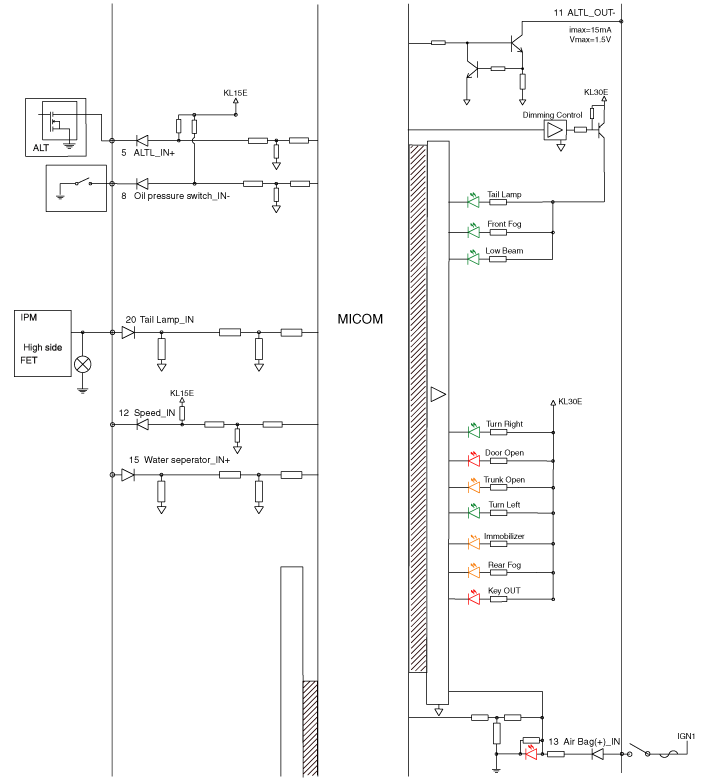

Circuit Diagram
[Standard]

[Supervision]

Description and operation

Description

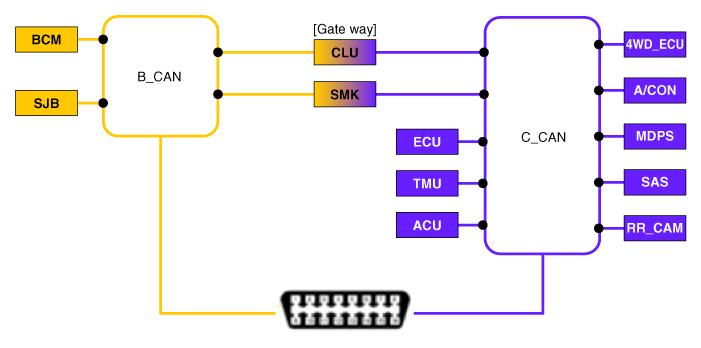

Communication Network Diagram

Abbreviation
Explanation
4WD_ECU
 4WD Control Unit
A/CON
 Aircon Control
ACU
 Airbag Control Unit
B_CAN
 Body Controller Area Network
BCM
 Body Control Module
C_CAN
 Chassis Controller Area Network
CLU
 Cluster Module
ECU
 Engine Control Unit
MDPS
 Motor Driven Power Steering
SAS
 Steering Angle Sensor
SJB
 Smart Junction Block
SMK
 Smart Key Unit
TMU
 Telematics Unit
RR_CAM
 Rear View Camera

Cluster Variant Coding
As we have more options (ESC, TPMS, etc.) in the car, the dashboard now have more information to display depending on the chosen options.
For this reason, we need to learn which options the current vehicle when we replace the dashboard.
To address this issue, a course of learning based on the option required for the vehicle when replacing the dashboard should be carried out.
This is called Variant Coding.

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the cluster fascia panel.
(Refer to Body - "Cluster Fascia Panel")
3.
Remove the cluster (A) from the housing after removing 4 screws.
4.
Disconnect the cluster connecter (A) and then remove the cluster (B).
Installation
1.
Connect the cluster connector.
2.
Install the cluster assembly.
3.
Install the cluster facia panel.
4.
Connect the negative (-) battery terminal.
Inspection
1.
Check point (Warning indicator)

•
Fault conditions and normal operating conditions, refer to the owner's manual.
No
Ref Symbol
Name
Color
Signal input
Signal Control
(Unit / Sensor)
Check point
1

Turnsignal Lamp (Left)
 Green
 B-CAN
 BCM
1)
Multifunction switch
2)
BCM
3)
CAN failure
2

Turnsignal Lamp (Right)
 Green
 B-CAN
 BCM
1)
Multifunction switch
2)
BCM
3)
CAN failure
3

Front Fog Lamp
 Green
 B-CAN
 SJB
1)
Multifunction switch
2)
SJB
3)
CAN failure
4

Tail Lamp
 Green
 B-CAN
 BCM
1)
Multifunction switch
2)
BCM
3)
CAN failure
5

High Beam
 Blue
 B-CAN
 SJB
1)
Multifunction switch
2)
SJB
3)
CAN failure
6

Rear Fog lamp
 Yellow
 B-CAN
 SJB
1)
Multifunction switch
2)
SJB
3)
CAN failure
7

Tail gate open
 Yellow
 B-CAN
 SJB
1)
SJB
2)
CAN failure
8

Immobilizer
 Yellow
 CAN
 Immobilizer Unit
1)
Immobilizer system
2)
Wiring failure
3)
CAN failure
9

ABS
 Yellow
 C-CAN
 ABS
TCS
1)
ABS system
2)
TCS system
3)
CAN failure
10

ESC
 Yellow
 C-CAN
 TCS
1)
TCS system
2)
CAN failure
11

ESC OFF
 Yellow
 C-CAN
 TCS
1)
TCS system
2)
CAN failure
12

Check Engine
 Yellow
 C-CAN
 ECM
1)
ECM
2)
CAN failure
13

Fuel Low
 Yellow
 Hard-wired
 Fuel sender
1)
Fuel sender
2)
Wiring failure
14

Seat belt
 Red
 B-CAN
 BCM
1)
Seat belt switch
2)
BCM
3)
CAN failure
15

Door Open
 Red
 B-CAN
 BCM
1)
Door switch
2)
BCM
3)
CAN failure
16

ABS
Parking Brake
Brake Fluid
 Red
 C-CAN
 EVP
ABS
TCS
1)
ABS system
2)
TCS system
3)
EVP system
4)
CAN failure
B-CAN
 SJB
(Park brake switch,Brake Fluid switch)
1)
Brake fluid switch
2)
Parking brake switch
3)
SJB
4)
CAN failure
17

Air Bag
 Red
 C-CAN
 SRSCM
1)
SRSCM system
2)
CAN failure
18

Alternator
(Battery Charge)
Red
 Hard-wired
 Alternator
1)
Alternator
2)
Wiring failure
19

Oil Pressure
 Red
 Hard-wired
 Oil Pressure switch
1)
Oil Pressure switch
2)
Wiring failure
20

EPS (MDPS)
 Red
 C-CAN
 MDPS
1)
MDPS unit
2)
MDPS motor
3)
CAN failure
21

KEY OUT
 Red
 B-CAN
 SMK
1)
SMK system
2)
CAN failure
22

Low Beam
 Green
 B-CAN
 BCM
1)
Multifunction Switch
2)
BCM
3)
CAN failure
23

GLOW
 Yellow
 C-CAN
 ECM
1)
ECM
2)
CAN failure
24

Water seperator
 Red
 Hard-wired
 Water seperator sensor
1)
Water seperator sensor
2)
Wiring failure
25

Over speed
 Yellow
 C-CAN
 ECM
1)
ECM
2)
CAN failure

2.
Check the gauge functionality refer to below information when gauge has a problem
No
Gauge
Input type
Input source
Check point
1
 Speed gauge
 CAN
 MT : Speed sensor (Pulse)
AT : TCU
 CAN failure
2
 Tacho gauge
 CAN
 EMS
 EMS
CAN failure
3
 Coolant temp gauge
 CAN
 EMS
 EMS
CAN failure
4
 Fuel gauge
 Hardwire
 Fuel sender
 Fuel sender (Wiring failue)

Diagnosis with GDS
1.
The body electrical system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS)
The diagnostic system (GDS) provides the following information.
(1)
Self diagnosis : Checking the failure code (DTC) and display
(2)
Current data : Checking the system input/output data state
(3)
Actuator test : Checking the system operation condition
(4)
Additional function : Other controlling such as the system option and zero point adjustment
2.
Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.
3.
Select the "Body Control Module (BCM)" to check the "Cluster Module (CLU)".
4.

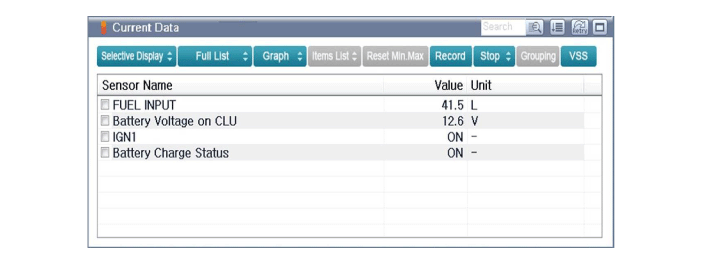

Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the cluster module (CLU) can be checked.

5.

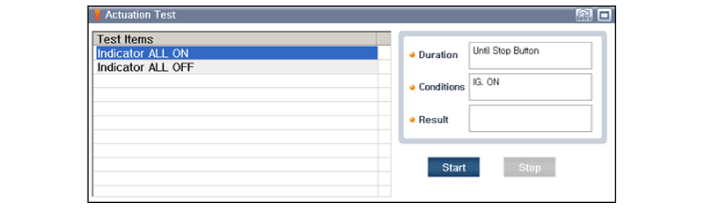

To check the input value of cluster illumination, select option "Actuation Test".

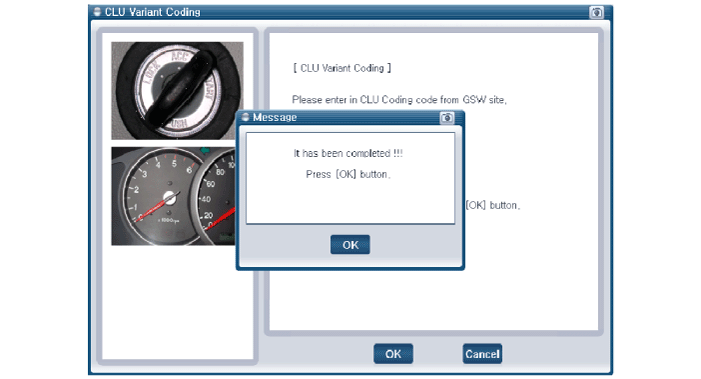

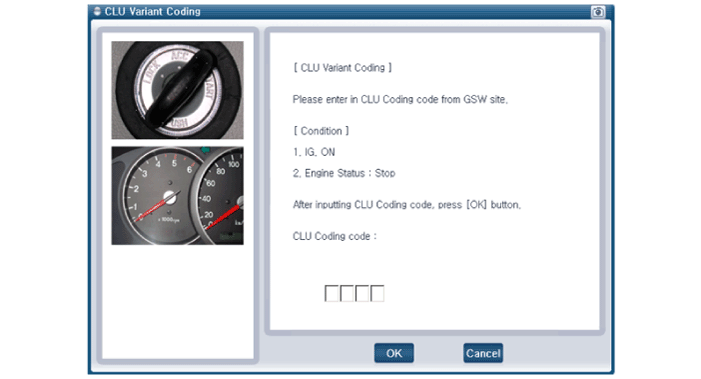

CLU Variant Coding
After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.
1.

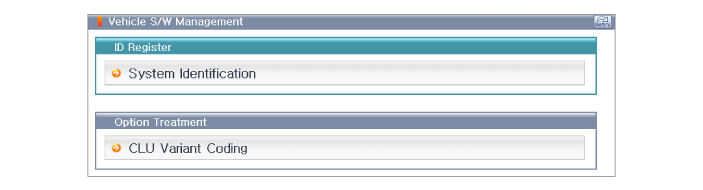

Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
2.
Select the "Body Control Module (BCM)" to check the"'Cluster Module (CLU)".
3.

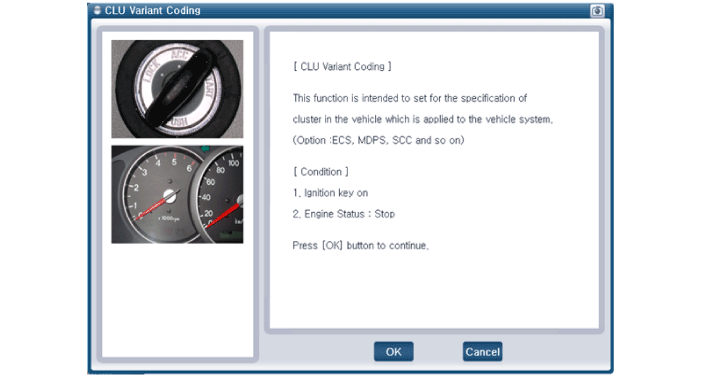

Select variant coding mode to perform.
