Hyundai Creta: Mirror / Outside Rear View Mirror

Components and components location

Component Location

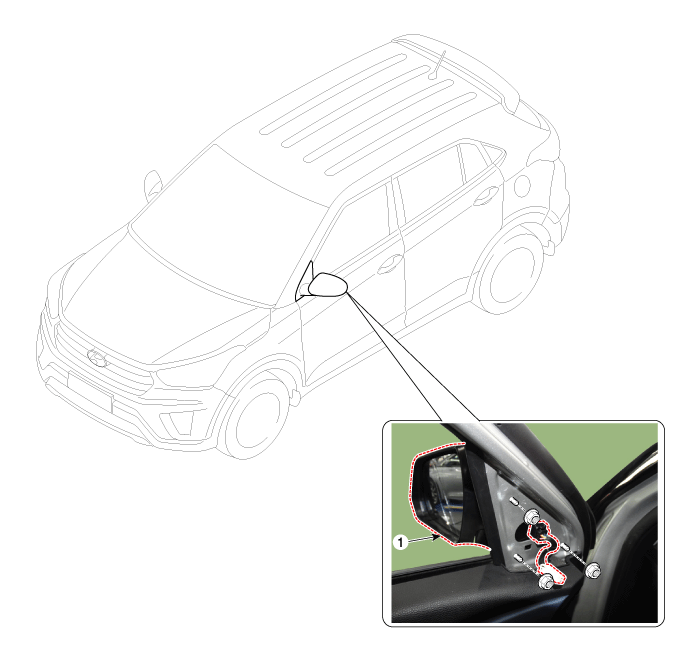

1. Outside rear view mirror


Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
1.
Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.
Disconnect the outside rear view mirror connector (A).

3.
After loosening the mounting nuts, then remove the outside rear view mirror (A).
Tightening torque :
6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

4.
To install, reverse the removal procedure.

Make sure the connector is connected properly.
Replace any damaged clips.
