Hyundai Creta: Roof Trim / Roof Trim Assembly

Hyundai Creta GS 2014-2024 Service Manual / Body (Interior and Exterior) / Roof Trim / Roof Trim Assembly

Components and components location

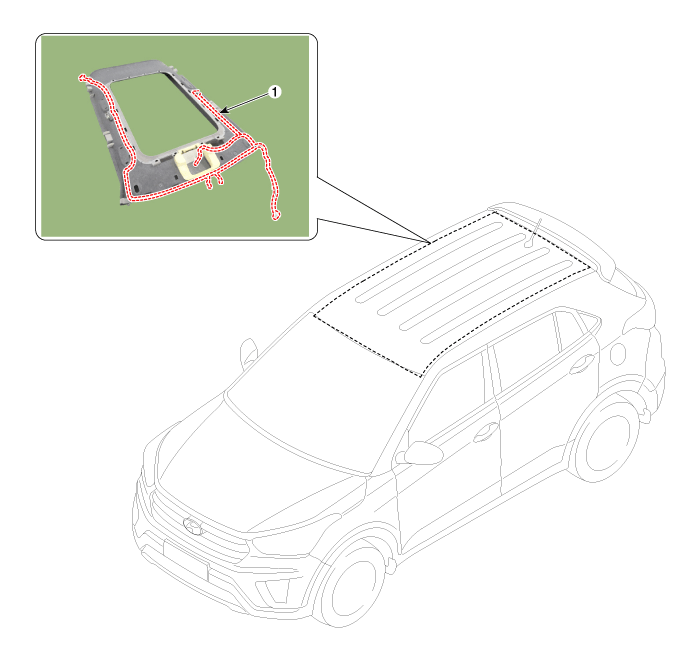

Component Location

1. Roof Trim Assembly

Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front pillar trim.
(Refer to Interior Trim - "Front Pillar Trim")
2.
Remove the rear seat.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the luggage side trim.
(Refer to Interior Trim - "Rear Luggage Side Trim")
4.
Remove the canter pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
5.
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
6.
Remove the sunvisor and retainer.
(Refer to Roof Trim - "Sunvisor")
7.
Remove the assist handle.
(Refer to Roof Trim - "Assist Handle")
8.
Remove the overhead console lamp.
(Refer to Body Electrical System - "Overhead Console Lamp")
9.
Remove the room lamp.
(Refer to Body Electrical System - "Room Lamp")
10.
Remove the ECM mirror cover (A).
11.
Disconnect the ECM mirror connector (B).
12.
Remove the auto defog sensor cover (A).
13.
Disconnect the auto defog sensor connector (B).
14.
Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.
[Driver's]

[Passenger's]

15.
Disconnect the roof main connector (A).
16.
Remove the roof trim mounting clip and remove the roof trim assembly (A).

•
Be careful not to wrinkle on the roof trim.

17.
Remove the roof trim assembly (A) from the body panel and then carry it out of the vehicle through the tailgate.
18.
Remove the vanity lamp.
(Refer to Body Electrical System - "Vanity Lamp")
19.
Remove roof trim wiring harness (A) from the roof trim (B).

•
Take care not to damage the roof trim wiring harness (A) when removing.


1)
Apply the hot melt continuously when installing the roof trim wiring harness (A) on the roof trim (B) using the hot melt gun tool.
2)
Put anti-noise pad on roof trim (B) to prevent the noise.
20.
To install, reverse the removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips.
