Hyundai Creta: SRSCM / Side Impact Sensor (SIS)
Description and operation
The Side Impact Sensor (SIS) system consists of two front SIS which are installed
inside the Center Pillar (LH and RH).
They are remote sensors that detect acceleration due to collision at their mounting
locations. The primary purpose of the Side Impact Sensor (SIS) is to provide
an indication of a collision. The Side Impact Sensor (SIS) sends acceleration
data to the SRSCM.
Components and components location

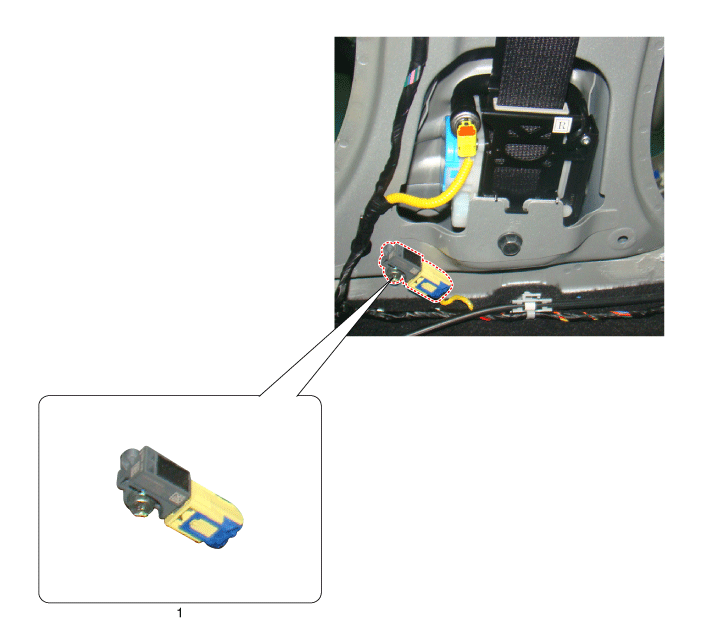

1. Side Impact Sensor (SIS)
|
|
Repair procedures
Gravity Side Impact Sensor
| • |
Removal of the airbag must be performed according to the precautions/procedures
described previously.
|
| • |
Before disconnecting the side impact sensor connector(s), disconnect
the side airbag connector(s).
|
| • |
Do not turn the ignition switch ON and do not connect the battery
cable while replacing the side impact sensor.
|
|
| 1. |
Disconnect the battery negative cable and wait for at least three minutes
before beginning work.
|
| 2. |
Remove the door scuff trim.
(Refer to Body - "Interior Trim")
|
| 3. |
Remove the center pillar trim.
(Refer to Body - "Interior Trim")
|
| 4. |
Disconnect the side impact sensor connector (A).
|
| 5. |
Loosen the side impact sensor mounting bolt (B) and remove the side
impact sensor (C).
|
Gravity Side Impact Sensor
| • |
Do not turn the ignition switch ON and do not connect the battery
cable while replacing the side impact sensor.
|
|
| 1. |
Install the new side impact sensor with the bolt then connect the side
impact sensor connector.
|
Tightening torque :
8.0 ~ 10.0 N.m (0.8 ~ 1.0 kgf.m, 7.0 ~ 7.4 lb-ft)
|
|
| 2. |
Install the center pillar trim.
(Refer to Body - "Interior Trim")
|
| 3. |
Install the door scuff trim.
(Refer to Body - "Interior Trim")
|
| 4. |
Reconnect the battery negative cable.
|
| 5. |
After installing the Side Impact Sensor, confirm proper system operation:
| • |
Turn the ignition switch ON; the SRS indicator light should
be turned on for about six seconds and then go off.
|
|
