Hyundai Creta: Starting System / Troubleshooting

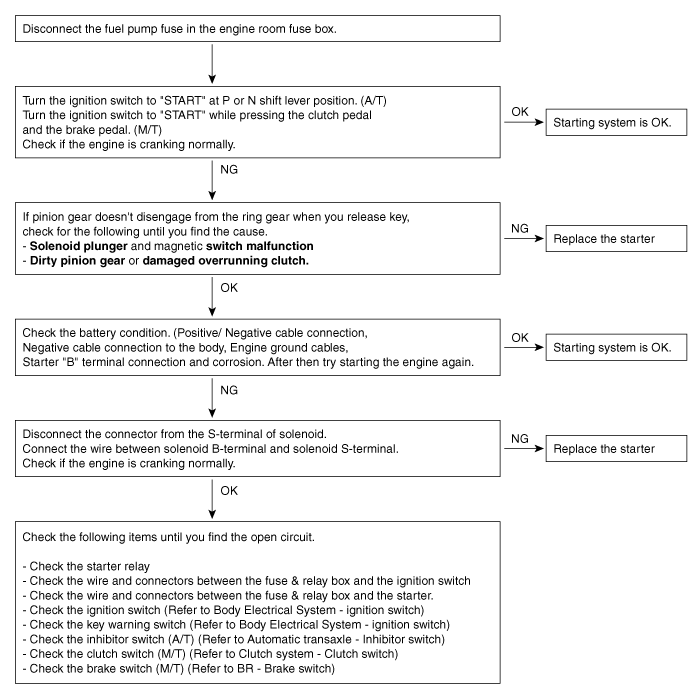

Troubleshooting

The battery must be in good condition and fully charged for this troubleshooting.
