Lincoln Nautilus: Fuses / Under Hood Fuse Box

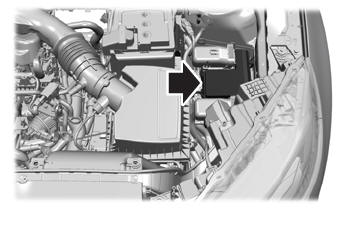

Locating the Under Hood Fuse Box

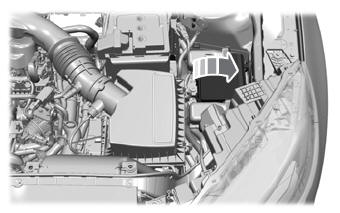

Accessing the Under Hood Fuse Box
Accessing the Under Hood Fuse Box - Top

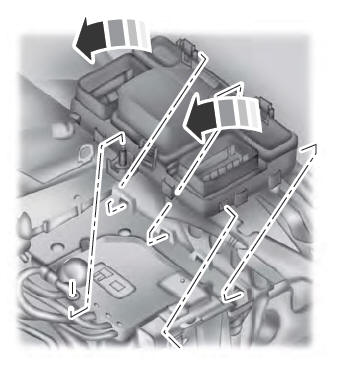

Accessing the Under Hood Fuse Box - Bottom
- Release the latches on both sides of the fuse box.
- Raise the inboard side of the fuse box from the cradle.
- Move the fuse box toward the center of the engine compartment.
- Pivot the outboard side of the fuse box to access the bottom side.

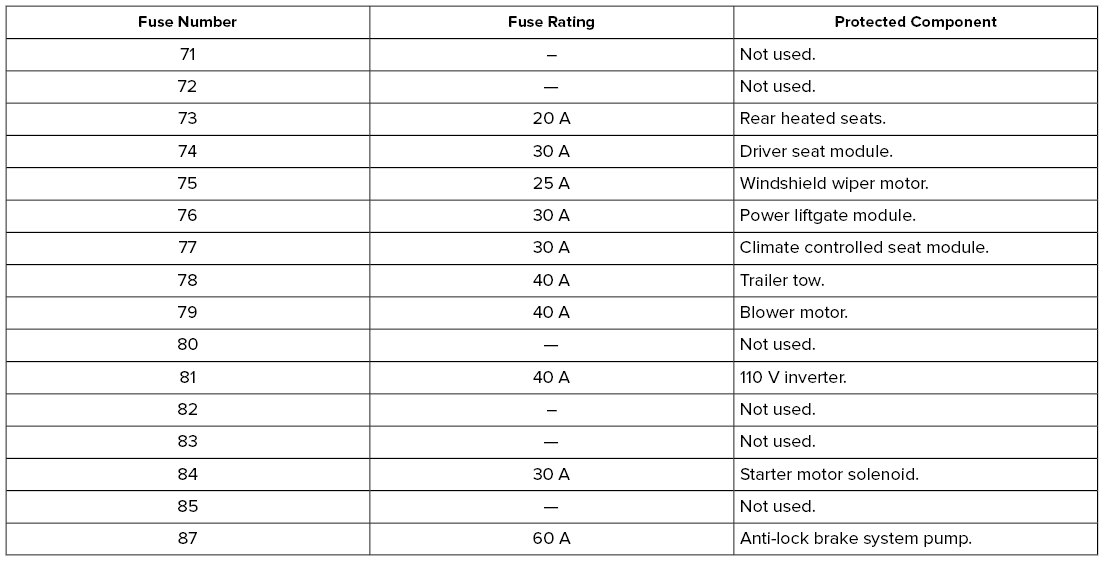

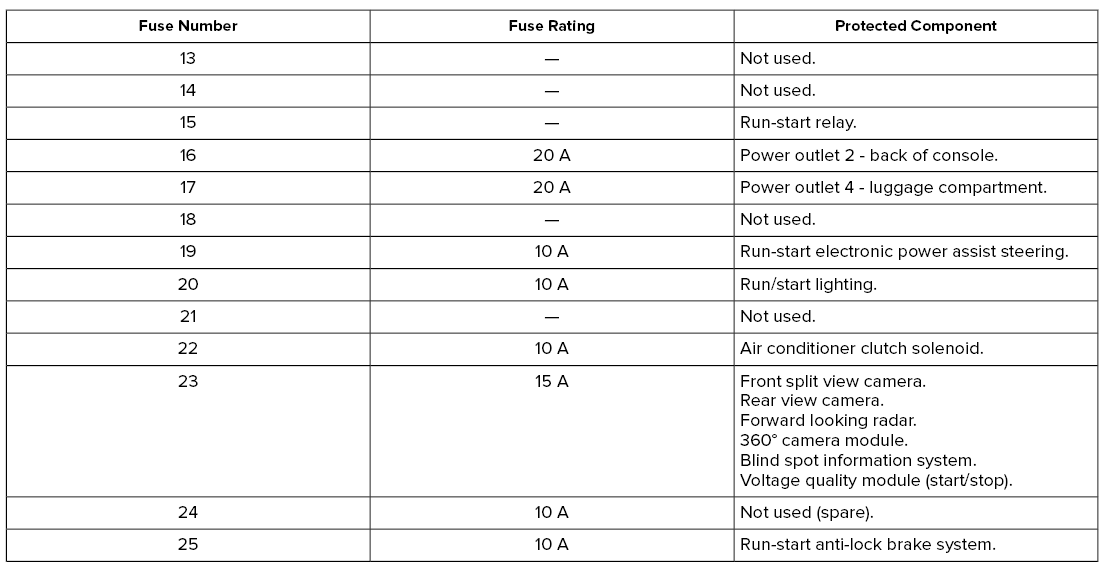

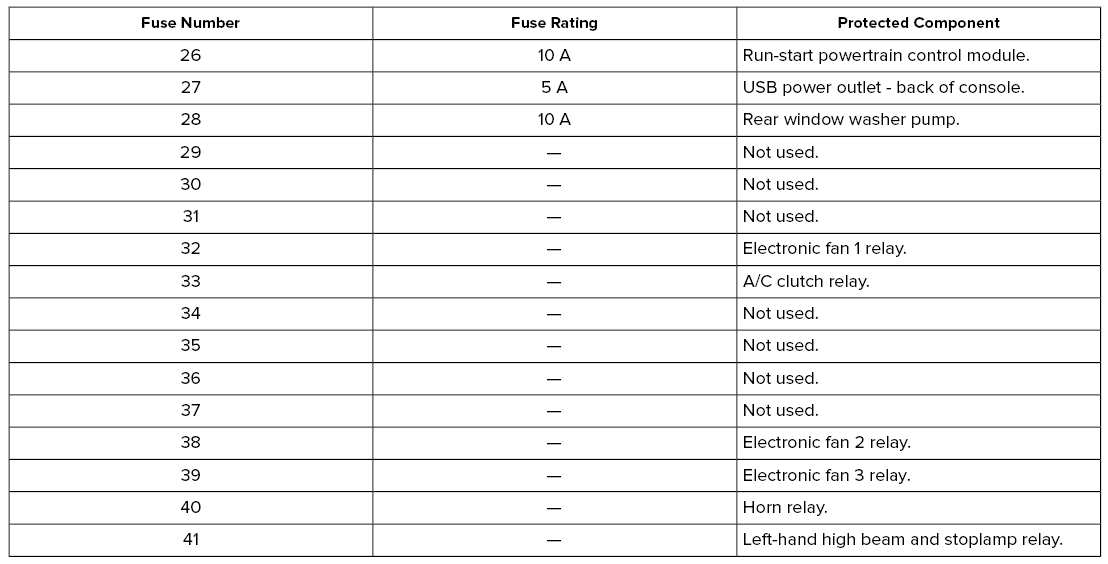

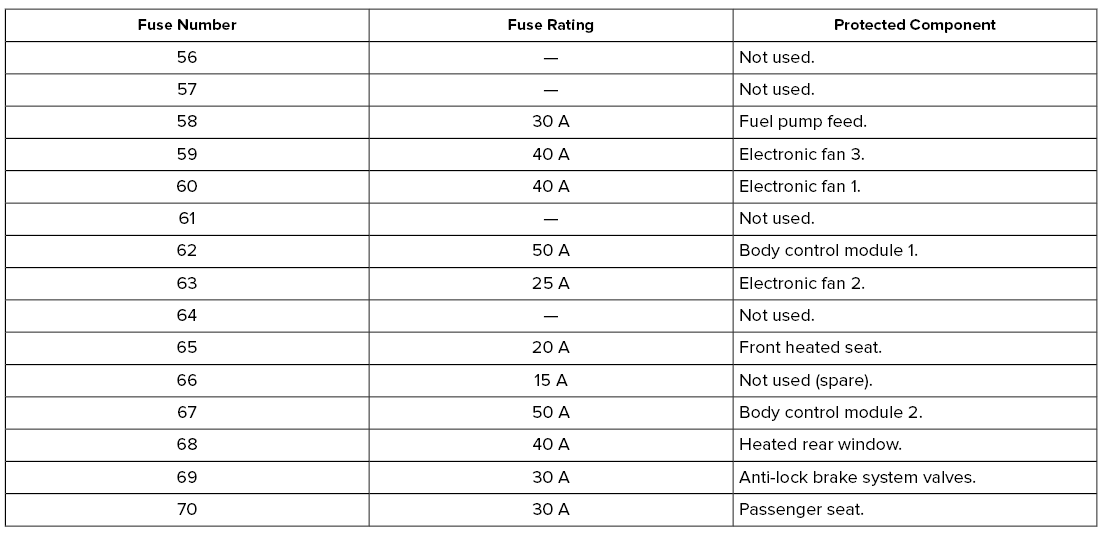

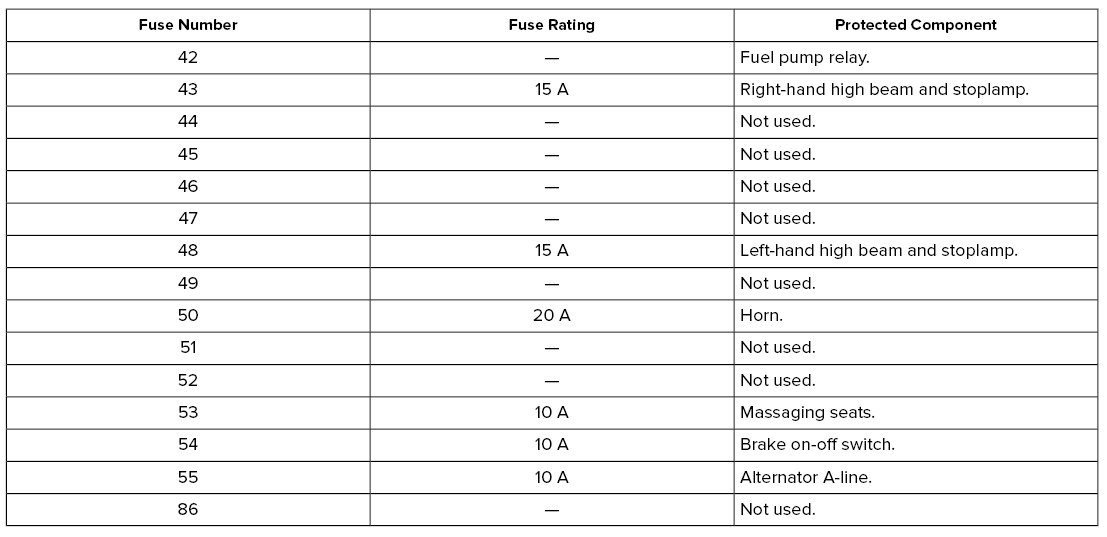

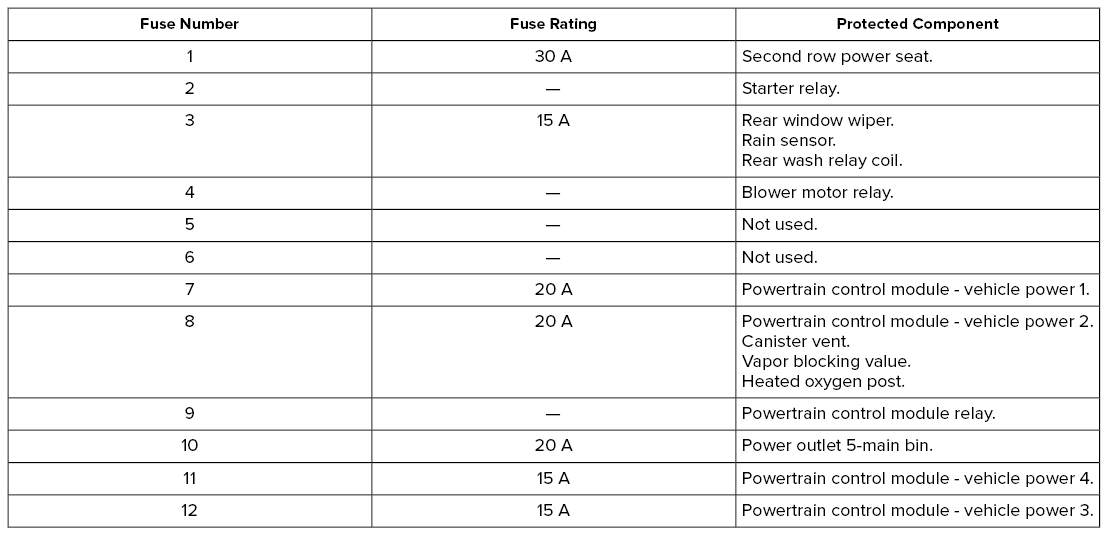

Identifying the Fuses in the Under Hood Fuse Box

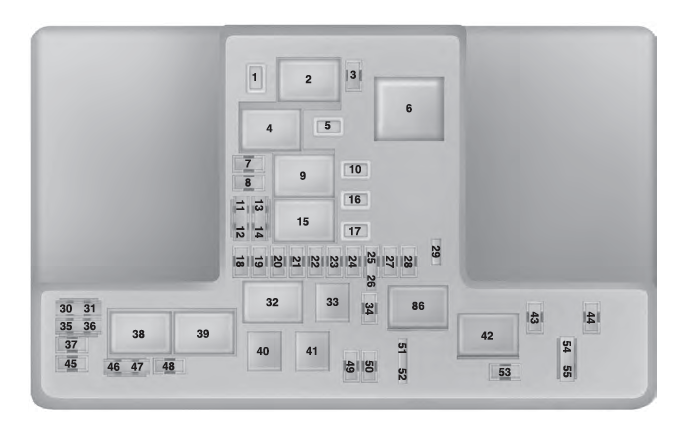

Under Hood Fuse Box - Top

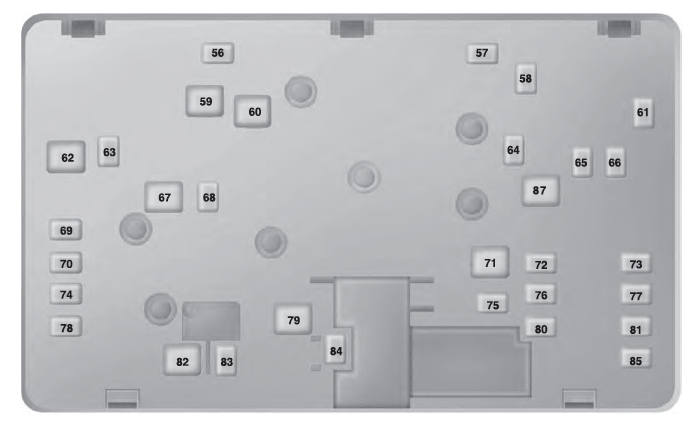

Under Hood Fuse Box - Bottom
Fuses
Fuse Precautions
WARNING: Always disconnect the
battery before servicing high current fuses.
WARNING: To reduce risk of
electrical shock, always replace the cover
to the power distribution box befo ...
Body Control Module Fuse Box
Locating the Body Control Module Fuse Box
Accessing the Body Control Module Fuse Box
To access the fuses in the body control
module fuse box, contact an authorized
dealer.
Identifying the Fuses in ...
