Hyundai Creta: Air bag-supplemental restraint system(SRS) / Air bag warning label

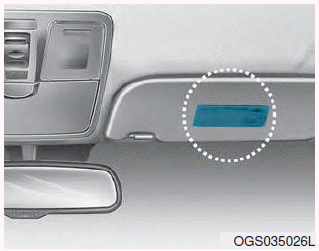

Air bag warning labels are attached to alert the driver and passengers of potential risks of the air bag system.
Be sure to read all of the information about the air bags that are installed on your vehicle in this Owner’s Manual.
