Hyundai Creta: Specifications & Consumer information / Air conditioner compressor label

Hyundai Creta GS 2014-2019 Owners Manual / Specifications & Consumer information / Air conditioner compressor label

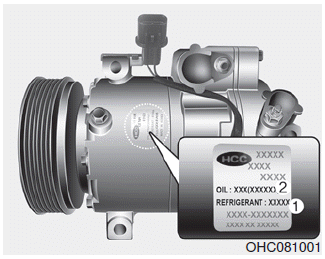

A compressor label informs you the type of compressor your vehicle is equipped with such as model, supplier part number, production number, refrigerant (1) and refrigerant oil (2).
