Hyundai Creta: Interior features / Ashtray

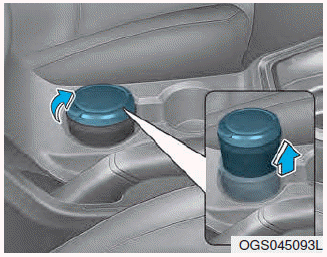

To use the ashtray, open the cover.
To clean or empty the ashtray, pull the ashtray out.
Do not use the vehicle’s ashtray as waste receptacles.
WARNING
Putting lit cigarettes or matches in an ashtray with other combustible materials may cause fire.
Cigarette lighter
To use the cigarette lighter, the ignition
switch must be in the ACC or ON
position.
Push the cigarette lighter all the way
into its socket. When the element is
heated, the lighter will pop ...
Cup holder
Cups or small beverage cans may be
placed in the cup holders.
WARNING
Avoid abrupt starting and braking
when the cup holder is in use
to prevent spilling your drink. If
hot liquid sp ...
