Hyundai Creta: Battery / Battery capacity label

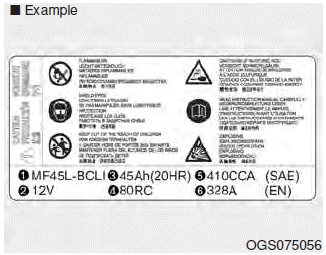

❈ The actual battery label in the vehicle may differ from the illustration.
1. MF45L-BCI : The HYUNDAI model name of battery
2. 12V : The nominal voltage
3. 45Ah(20HR) : The nominal capacity (in Ampere hours)
4. 80RC : The nominal reserve capacity (in min.)
5. 410CCA : The cold-test current in amperes by SAE
6. 328A : The cold-test current in amperes by EN
