Hyundai Creta: Interior Trim / Center Pillar Trim

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim

Components and components location

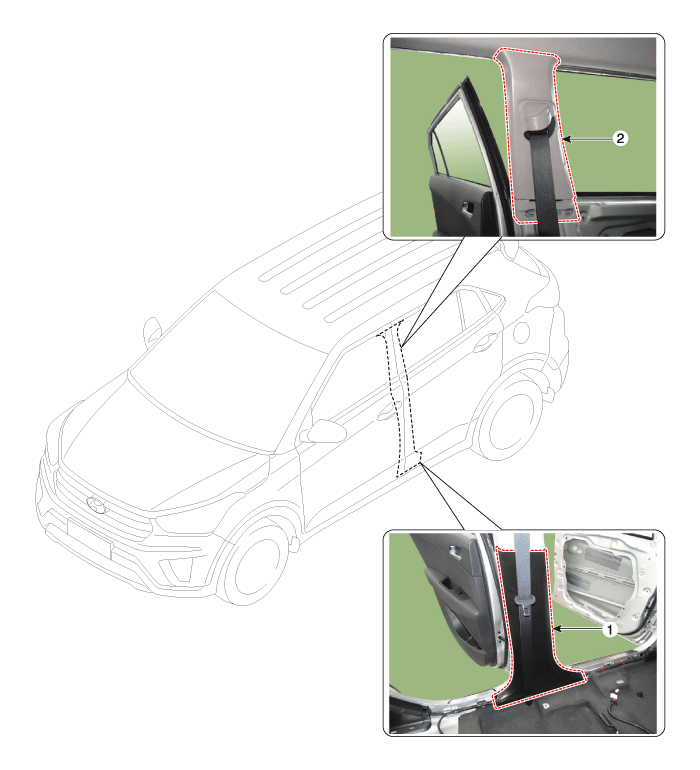

Component Location

1. Center pillar lower trim

2. Center pillar upper trim

Repair procedures

Replacement

[Center pillar lower trim]

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

2.	Remove the rear door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

3.	Slighty remove the front door body side weatherstrip.

4.	Slighty remove the rear door body side weatherstrip.

5.	Using a screwdriver or remover, remove the center pillar lower trim (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.

[Center pillar upper trim]

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the center pillar lower trim. (Refer to Interior Trim - "Center Pillar Trim")

After loosening the mounting bolt, then remove the front seat belt lower anchor (A).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

3.	Using a screwdriver or remover, remove the center pillar lower trim (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.

•	Install the center pillar upper trim (B) after inserting the upper hook (A).
