The child safety lock is provided to help prevent children seated in the rear from accidentally opening the rear doors. The rear door safety locks should be used whenever children are in the vehicle.

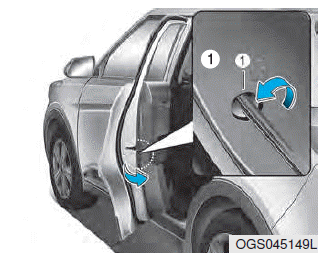

The child safety lock is located on
the edge of each rear door. When the
child safety lock is in the lock position
(), the rear door will not open if
the inner door handle is pulled.
To lock the child safety lock, insert a
key (or screwdriver) into the hole (1)
and turn it to the lock () position.
To allow a rear door to be opened from inside the vehicle, unlock the child safety lock.
WARNING
If children accidently open the rear doors while the vehicle is in motion, they could fall out of the vehicle. The rear door safety locks should always be used whenever children are in the vehicle.
Hyundai Creta GS 2014-2024 Service Manual: ESCL(Electronic Steering Column Lock)
Components and components location
Component
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
...
Hyundai Creta GS 2014-2024 Service Manual: Piston and Connecting Rod
Components and components location
Components
1. Piston ring (#1)
2. Piston ring (#2)
3. Oil ring
4. Piston
5. Piston pin
6. Connecting rod
7. Connecting rod upper bearing
8. Connecting rod lower bearing
9. Connecting rod bearing cap
...
