Hyundai Creta: Crash Pad / Cluster Fascia Panel

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel

Components and components location

Component Location

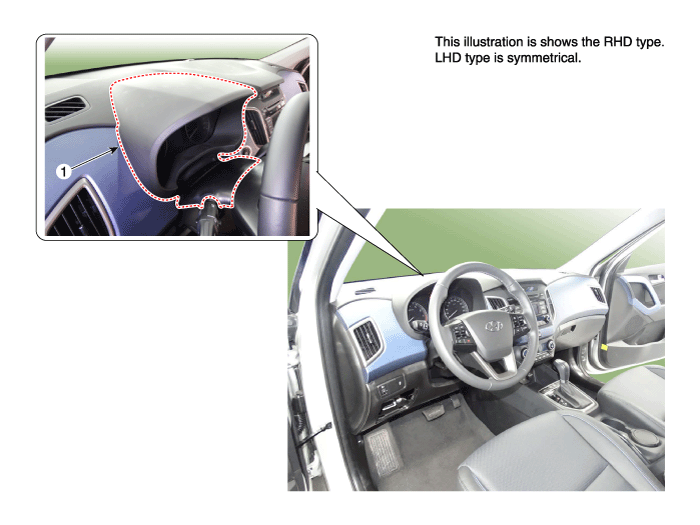

1. Cluster fascia panel

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Lower the steering wheel.

2.	Using a screwdriver or remover, remove the cluster fascia panel (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
