Hyundai Creta: Clutch System / Clutch Release Fork and Clutch Release Bearing

Hyundai Creta GS 2014-2025 Service Manual / Clutch System / Clutch System / Clutch Release Fork and Clutch Release Bearing

Components and components location

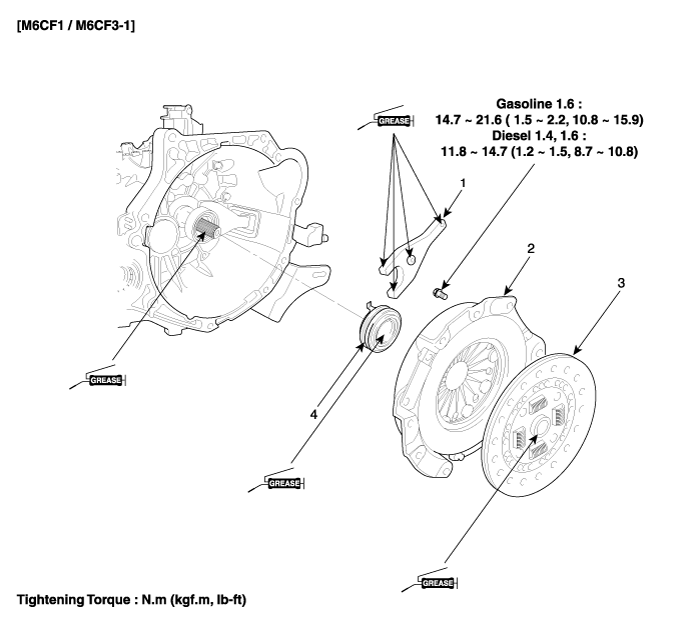

Components

1. Clutch release fork
2. Clutch cover assembly
3. Clutch disk assembly
4. Clutch release bearing

Repair procedures

Removal
1.
Remove the manual transaxle assembly.
(Refer to Manual Transaxle System - "Manual Transaxle")
2.
Remove the clutch release bearing (A).

3.
Pull the clip (A).

4.
Remove the clutch release fork (A).

5.
Remove the boot (A).

Inspection
1.
Check for damage to boot.
2.
Check for deformation to clutch release fork.
3.
Check for deformation to clutch release bearing.
Installation
1.
Install the boot (A).

2.
Install the clip to the clutch release fork.
3.
Apply to grease in location A, B and C.
Location
Quantity (g)
 Quantity
A
0.3 ~ 0.5
Release bearing & Fork
B
0.5 ~ 1.0
Release Fork & Fulcrum
C
0.4 ~ 0.8
Release cylinder & Fork

4.
Install the clutch release fork (B), clutch release bearing (A).

5.
Install the manual transaxle assembly.
(Refer to Manual Transaxle System - "Manual Transaxle")
