Hyundai Creta: Clutch System / Clutch Switch
Specifications
| Specifications |
|
Item |
Specifications |
|
Working voltage |
DC 12V |
|
Operating force |
Initial position : 0.25 ± 0.15N(0.025 ± 0.015kg, 0.056 ± 0.034lb) |
|
Full position : 0.8 ± 0.2 N(0.08 ± 0.02 kgf, 0.579 ± 0.014 lb-ft) |
|
|
Working temperature |
-40°C ~ 80°C (-40°F ~ 176°F) |
Description and operation
| Description |
| – |
Clutch operation is detected through clutch switch signal. This signal
enables ECM to cope with instant change of load condition.
|
| – |
Clutch switch signal is used to detect engaged gear with vehicle speed
and engine speed.
|

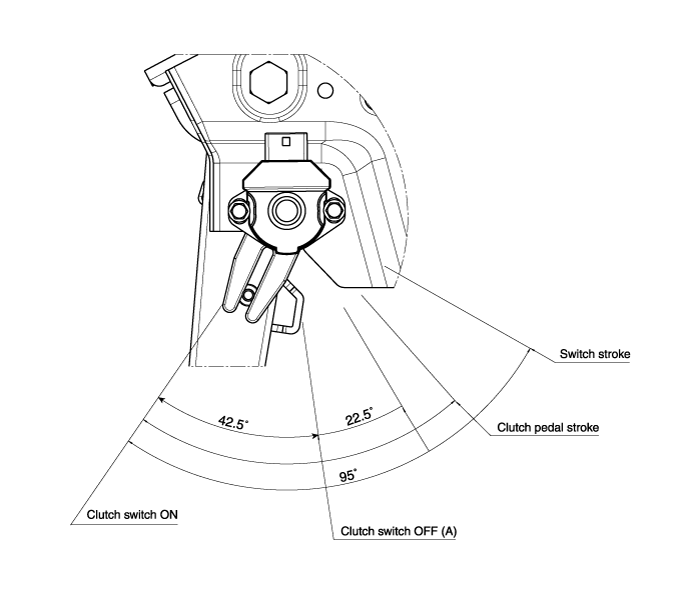

| Ignition lock & clutch switch operating locus |
| – |
If the clutch pedal is pressed down, (A) operate clutch switch at a
location.
|
Repair procedures
| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |
Disconnect the ignition lock & clutch switch connector (A).
|
| 3. |
Remove the ignition lock & clutch switch (A) after removing the bolt
(B-2ea).
|
| Inspection |
| Component Inspection |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |
Remove the ignition lock & clutch switch.
|
| 3. |
Rotate the switch lever to the direction of the arrow to check the operating
point (A).
|
| Installation |
| 1. |
Install is proceeds as follows.

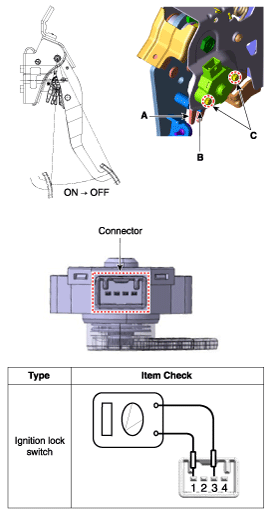

※ How to install the ignition lock & clutch switch
(A) After inserting the switch lever (A) into the clutch pedal pin (B),
pre-tighten the switch mounting bolt (C).
(B) Set the clutch switches so as to confirm that the electric current
is applied to the pins ① and ③.
(C) Fix the clutch pedal to the ignition lock switch ON/OFF strokes
(F).
(D) With the pedal fixed, rotate the switch clockwise and counter-clockwise
to set it to a position at the transition from ON to OFF. Then, tighten
the mounting bolt (C) to the specified torque.
(E) Once completing the assembly, check again that the switch is correctly
operating.
※ ON→OFF stroke tolerance should be within ± 3 mm.
|
