Hyundai Creta: Clutch System / Clutch Tube

Hyundai Creta GS 2014-2024 Service Manual / Clutch System / Clutch System / Clutch Tube

Components and components location

Components

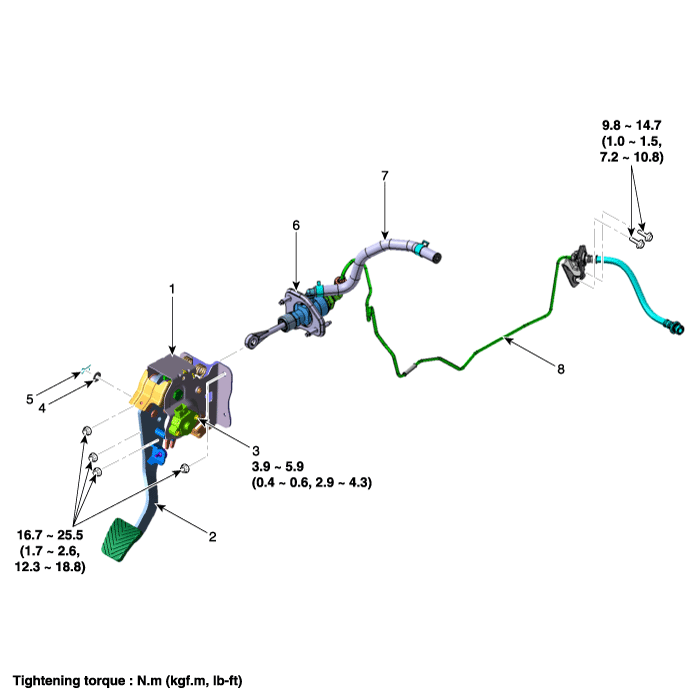

[M6CF1]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Washer

5. Snap pin
6. Master cylinder
7. Reservoir hose
8. Clutch tube

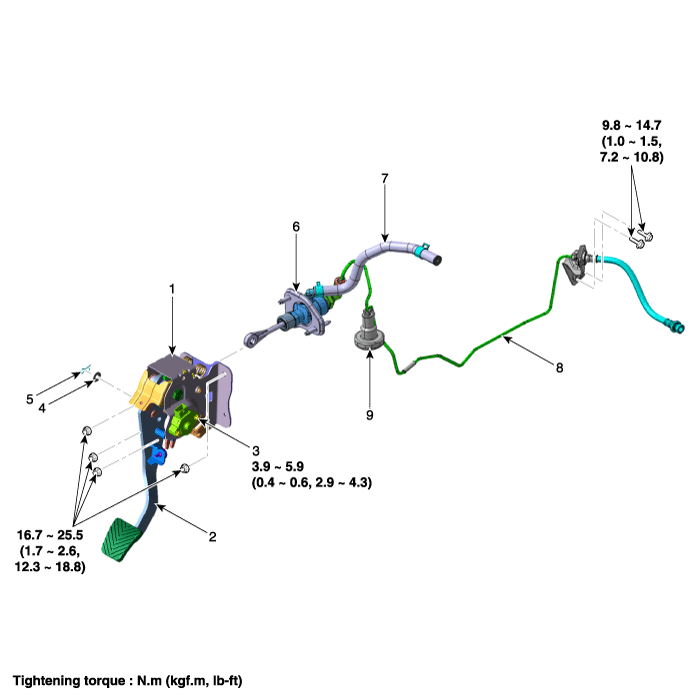

[M6CF3-1]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Washer

5. Snap pin
6. Master cylinder
7. Reservoir hose
8. Clutch tube
9. Regulator

Repair procedures

Removal

1.	Remove the air cleaner assembly. (Refer to Engine Mechanical System - " Air Cleaner)

2.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

3.	Remove the ECM. (Refer to Engine Control System - "ECM")

4.	In case of the diesel vehicle, remove the fuel filter. (Refer to Fuel Delivery System - "Fuel Filter")

Disconnect the tube (B) after removing the fixing pin (A).

•	Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water.

[M6CF1]

[M6CF3-1]

6.	Disconnect the tube (B) after removing the clip (A), from clutch tube bracket.

7.	Disconnect the clutch tube (A) from the clutch release cylinder (B).

Remove the clutch tube (B) from the vehicle after loosening the clutch tube bracket mounting bolt (A-2ea).

Tightening torque :

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 Ib-ft)

Installation

1.	Install in the reverse order of removal.

2.	After be equipped, perform bleeding air procedure in clutch release cylinder after pouring the brake fluid. (Refer to Clutch System - "Clutch Release Cylinder")
