Hyundai Creta: Timing System / Components and components location

Hyundai Creta GS 2014-2025 Service Manual / Engine Mechanical System / Timing System / Components and components location

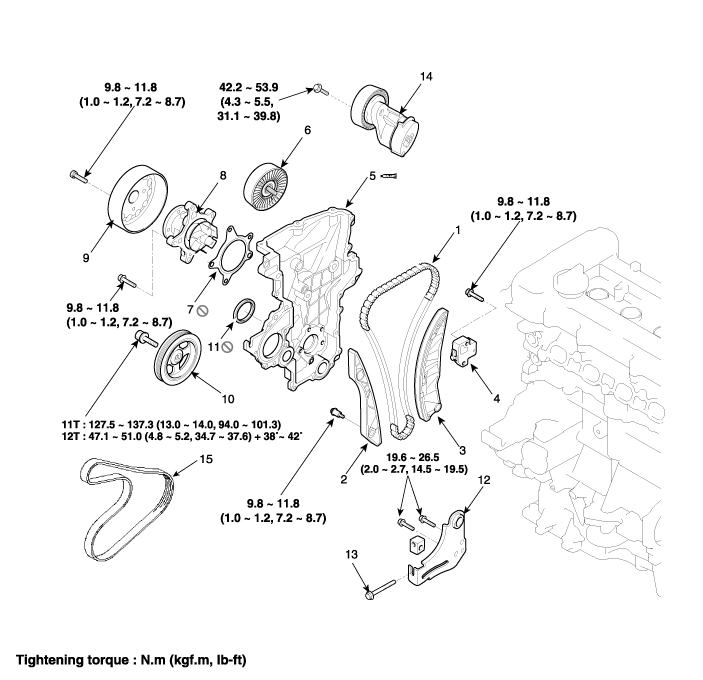

Components

1. Timing chain
2. Timing chain guide
3. Timing chain tensioner arm
4. Timing chain auto tensioner
5. Timing chain cover
6. Drive belt idler
7. Water pump gasket
8. Water pump

9. Water pump pulley
10. Crankshaft pulley
11. Front oil seal
12. Alternator bracket (Belt Tensioner) (Without HPS)
13. Tension adjustment bolt (Without HPS)
14. Drive belt auto tensioner (With HPS)
15. Drive belt

Timing System

...

Drive Belt

Components and components location Components 1. Drive Belt Repair procedures Removal and Installation 1. Disconnect the ...
