Hyundai Creta: Cylinder Block Assembly / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Engine Mechanical System / Cylinder Block Assembly / Components and components location

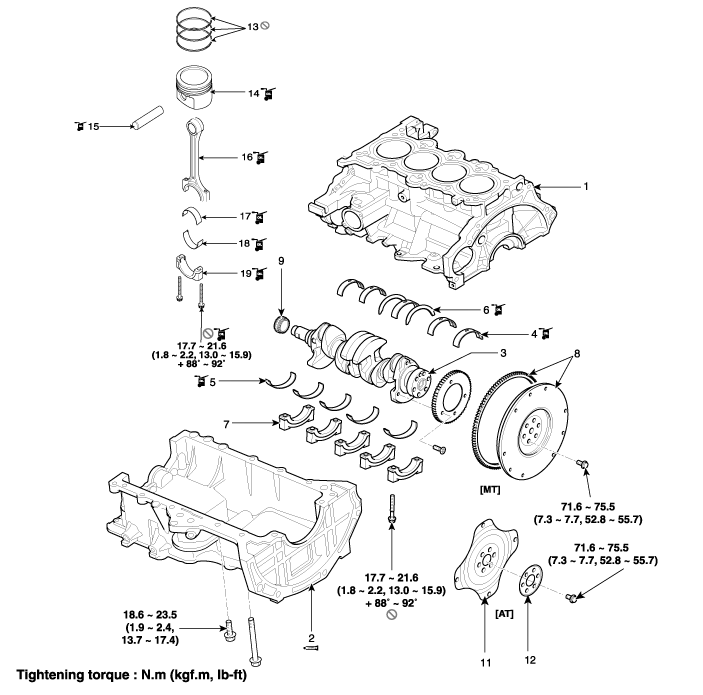

Components

1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing
5. Crankshaft lower bearing
6. Thrust bearing
7. Main bearing

8. Flywheel
9. Crankshaft sproket
10. Crankshaft pulley
11. Drive plate
12. Adapter plate
13. Piston ring
14. Piston

15. Piston pin
16. Connecting rod
17. Connecting rod upper bearing
18. Connecting rod lower bearing
19. Connecting rod bearing cap
