Hyundai Creta: Engine Control System / Components and components location

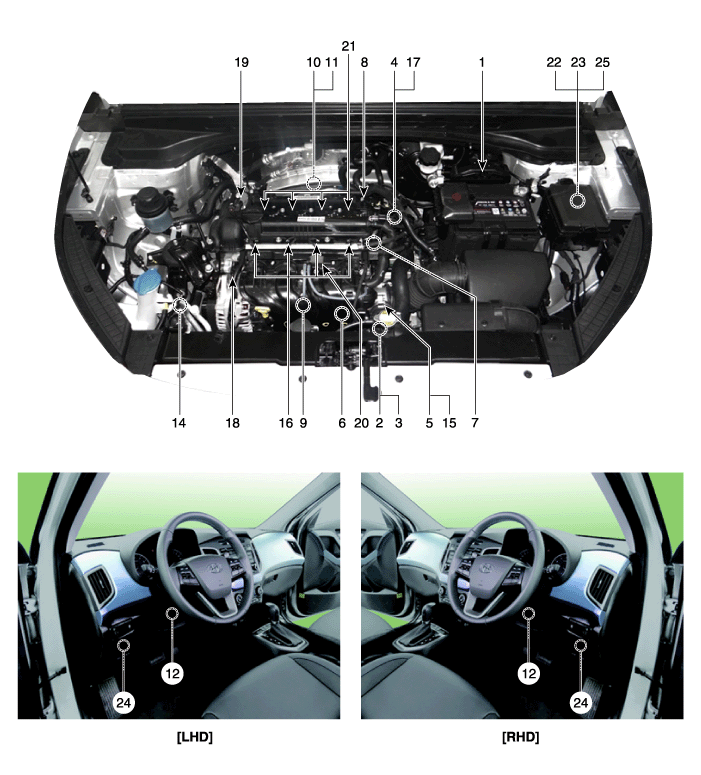

| Components Location |
| 1. ECM (Engine Control Module) 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) 4. Engine Coolant Temperature Sensor (ECTS) 5. Throttle Position Sensor (TPS) [integrated into ETC Module] 6. Crankshaft Position Sensor (CKPS) 7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] 9. Knock Sensor (KS) 10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] 11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] 12. Accelerator Position Sessor (APS) |
13. Vehicle Speed Sensor (VSS) 14. A/C Pressure Transducer (APT) 15. ETC Motor [integrated into ETC Module] 16. Injector 17. Purge Control Solenoid Valve (PCSV) 18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] 19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] 20. Variable Intake Solenoid (VIS) Valve 21. Ignition Coil 22. Main Relay 23. Fuel Pump Relay 24. Data Link Connector (DLC) [16 pin] 25. Multi-Purpose Connector [6 pin] |
|
1. ECM (Engine Control Module) |
2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) |
|
|
|
|
4. Engine Coolant Temperature Sensor (ECTS) |
5. Throttle Position Sensor (TPS) [integrated into ETC Module] 15. ETC Motor [integrated into ETC Module] |
|
|
|
|
6. Crankshaft Position Sensor (CKPS) |
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
|
|
|
|
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
9. Knock Sensor (KS) |
|
|
|
|
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] |
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
|
|
|
|
12. Accelerator Position Sessor (APS) |
14. A/C Pressure Transducer (APT) |
|
|
|
|
16. Injector 21. Ignition Coil |
17. Purge Control Solenoid Valve (PCSV) |
|
|
|
|
18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] |
19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] |
|
|
|
|
20. Variable Intake Solenoid (VIS) Valve |
22. Main Relay 23. Fuel Pump Relay 24. Multi-Purpose Check Connector [6pin] |
|
|
|
|
24. Data Link Connector (DLC) [16 pin] |
|
|
|
|
