Hyundai Creta: Fuel Delivery System / Components and components location
Hyundai Creta GS 2014-2025 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Components and components location

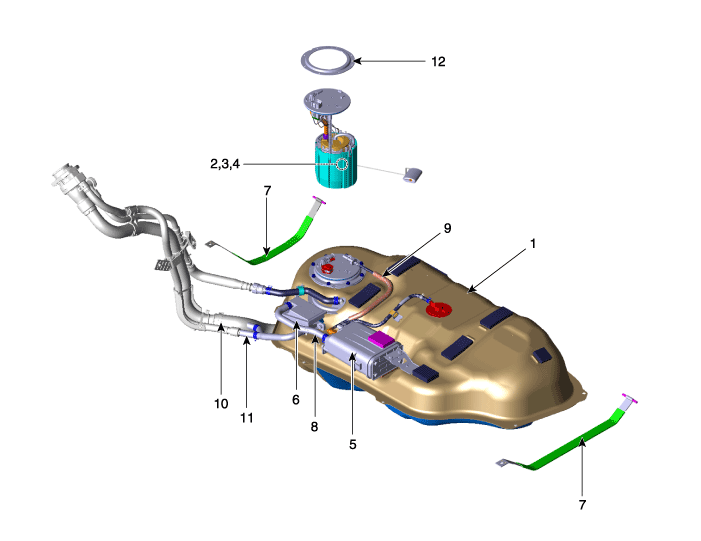

| Components Location |
| 1. Fuel Tank 2. Fuel Pump 3. Fuel Filter 4. Fuel Pressure Regulator 5. Canister 6. Fuel Tank Air Filter |
7. Fuel Tank Band 8. Ventilation Hose 9. Vapor Tube 10. Fuel Filler Hose 11. Leveling Hose 12. Fuel Pump Plate Cover |
Repair procedures
Fuel Pressure Test
1.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel
Line")
...
Other information:
