Hyundai Creta GS 2014-2019 Service Manual / Automatic Transaxle System / Valve Body System / Components and components location

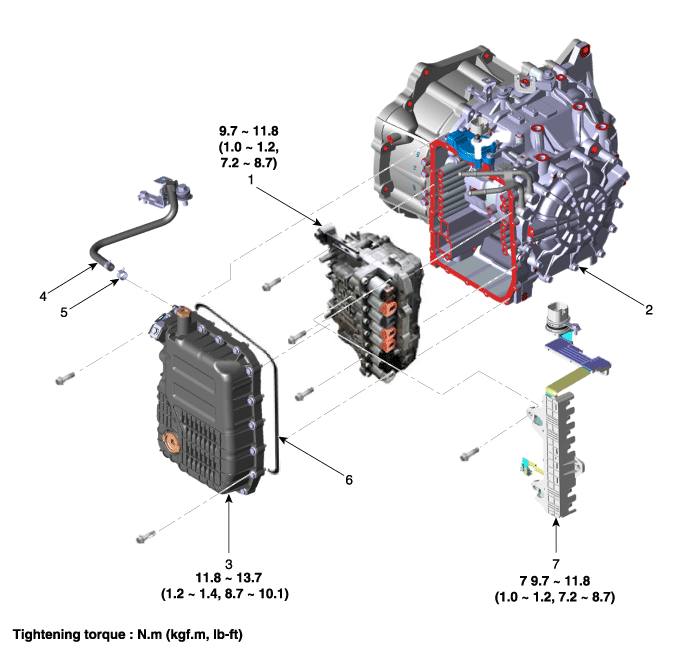

Components Location

1. Valve body assembly
2. Automatic transaxle
3. Valve body cover
4. Air breather hose

5. Air breather hose clamp
6. Valve body cover gasket
7. Solenoid valve connector

Valve Body

Description and operation Description The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump. Spec ...
