Hyundai Creta GS 2014-2019 Service Manual / Suspension System / Front Suspension System / Components and components location

Components Location

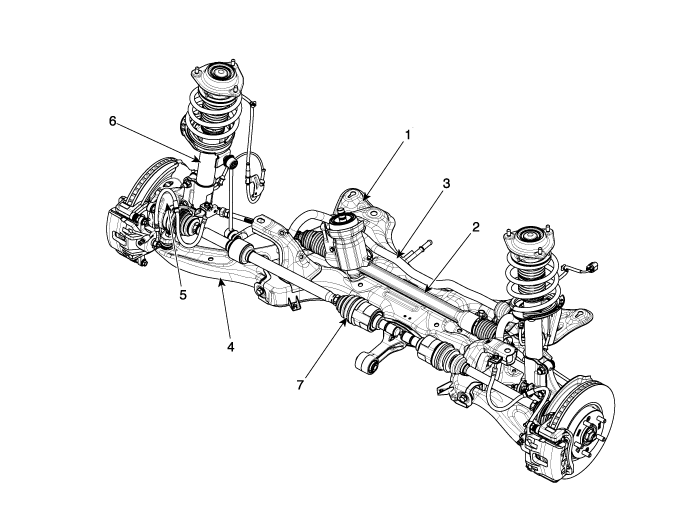

[LHD]

1. Sub frame
2. Steering gearbox
3. Front stabilizer bar
4. Front lower arm

5. Front axle
6. Front strut assembly
7. Drive shaft

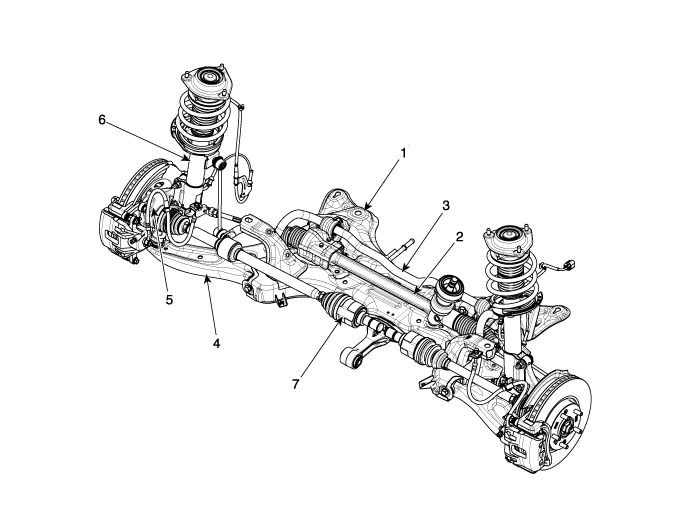

[RHD]

1. Sub frame
2. Steering gearbox
3. Front stabilizer bar
4. Front lower arm

5. Front axle
6. Front strut assembly
7. Drive shaft

Front Strut Assembly

Components and components location Components 1. Dust cover 2. Upper mounting nut 3. Self locking nut 4. Insulator 5. Spring upper pad 6. Stru ...
