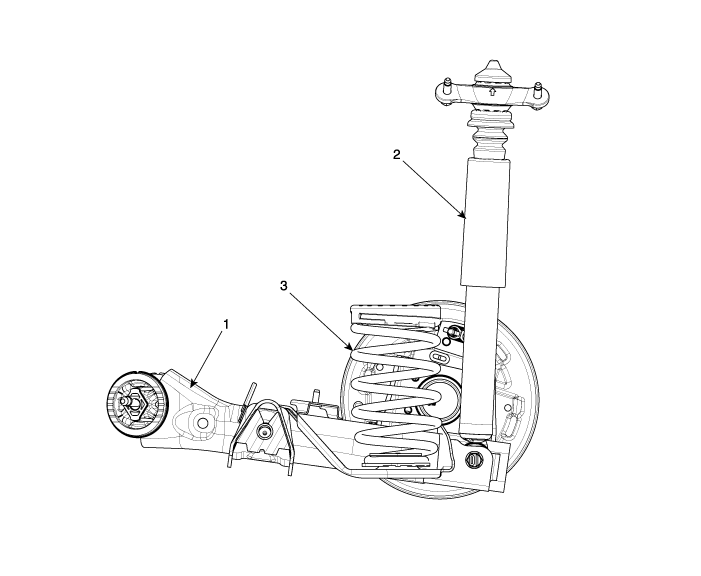

Components Location

1. Torsion beam axle
2. Shock absorber

3. Coil spring assembly

Rear Shock Absorber

Components and components location Components 1. Shock absorber 2. Dust cover 3. Bumper rubber 4. Insulator assembly 5. Washer 6. Lock nut 7. Ins ...
