Hyundai Creta: General Information / Components and components location

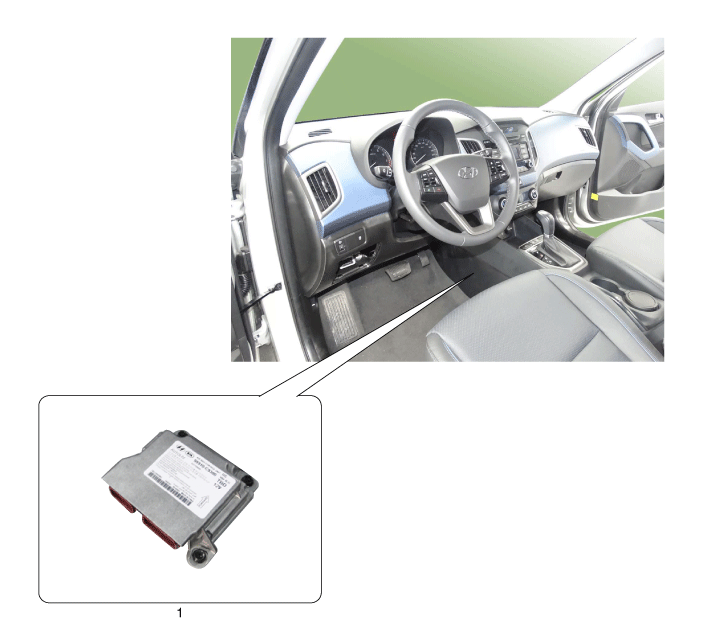

Supplemental Restraint
System Control Module (SRSCM) |
![](images/components_and_components_location-516/236/sgcrt5011l.gif)
1. Supplemental Restraint
System Control Module (SRSCM)
|
|

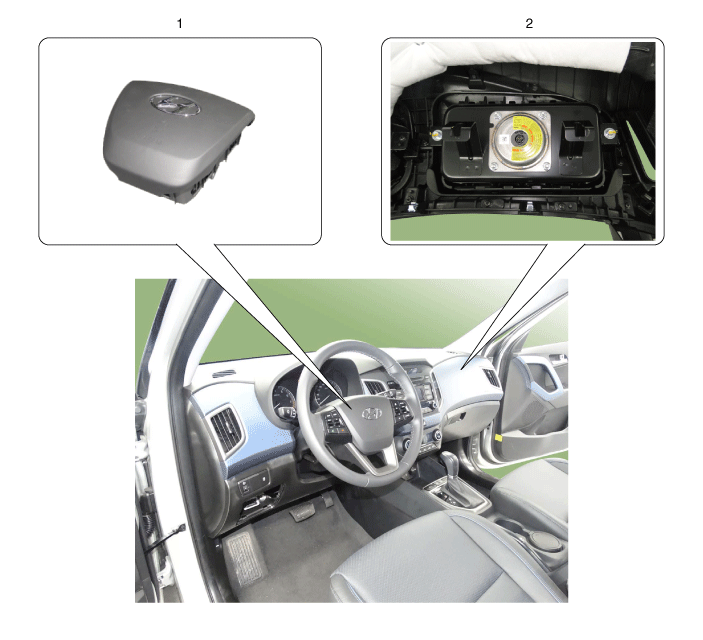

Driver Airbag (DAB)
/ Passenger Airbag (PAB) |
![](images/components_and_components_location-516/236/sgcrt5010l.gif)
1. Driver Airbag (DAB)
|
2. Passenger Airbag (PAB)
|
![](images/components_and_components_location-516/236/sgcrt5013l.gif)
![](images/components_and_components_location-516/236/sgcrt5200l.gif)

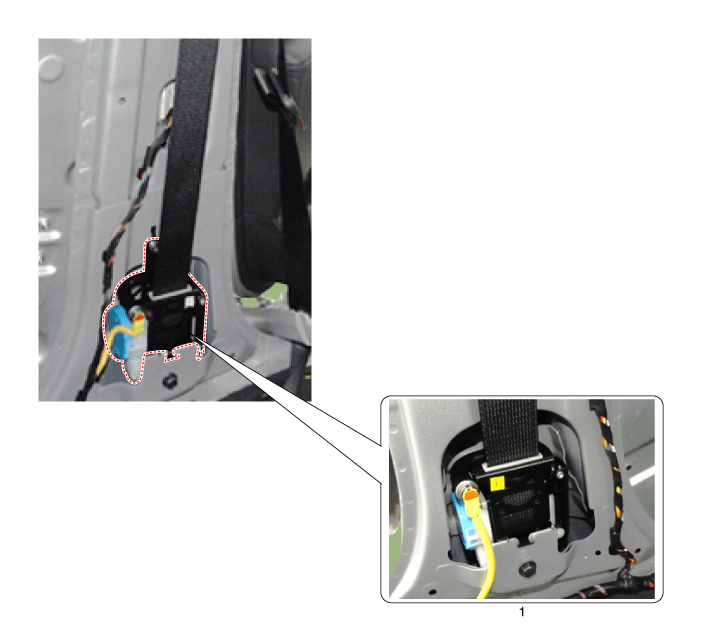

Seat Belt Pretensioner
(BPT) |
![](images/components_and_components_location-516/236/sgcrt5019l.gif)
1. Seat Belt Pretensioner
(BPT)
|
|

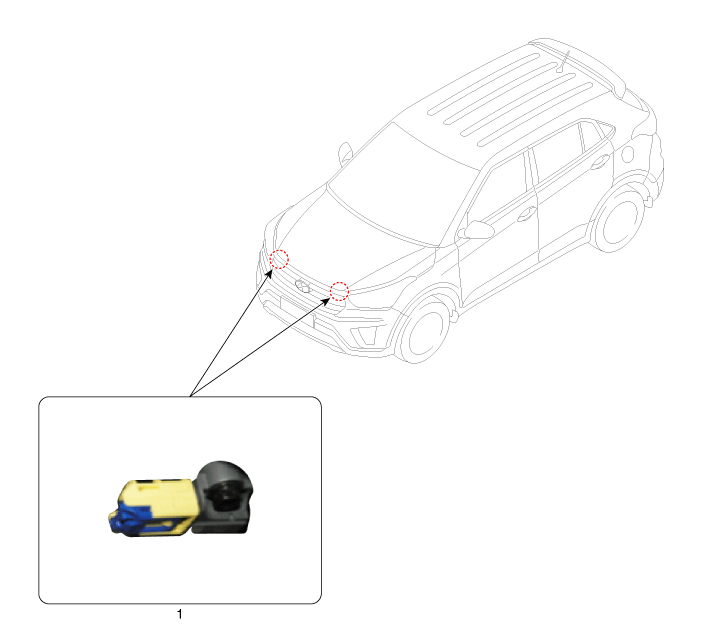

Front Impact Sensor
(FIS) |
![](images/components_and_components_location-516/236/sgcrt5001l.gif)
1. Front Impact Sensor
(FIS)
|
|
![](images/components_and_components_location-516/236/sgcrt5101l.gif)

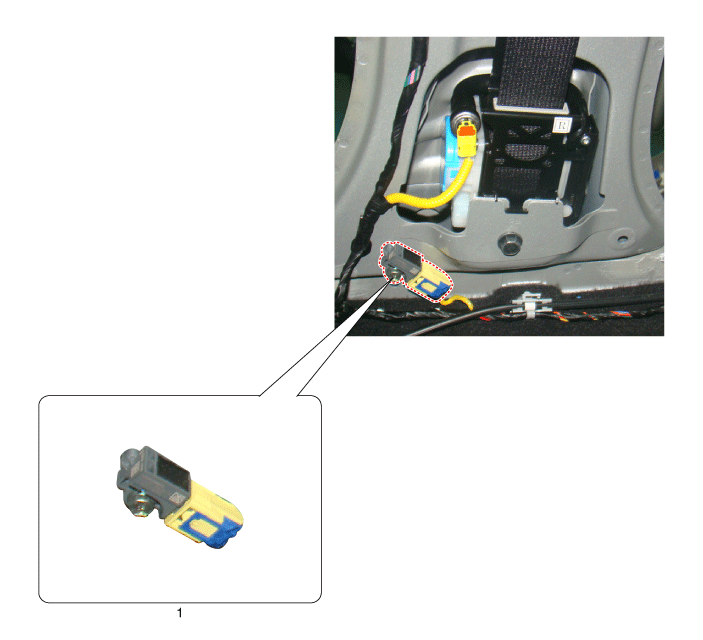

1. Side Impact Sensor (SIS)
|
|
Component Replacement After
Deployment
•
Before doing any SRS repairs, use the GD ...
