Hyundai Creta: ESP(Electronic Stability Program) System / Components and components location

Hyundai Creta GS 2014-2025 Service Manual / Brake System / ESP(Electronic Stability Program) System / Components and components location

Components

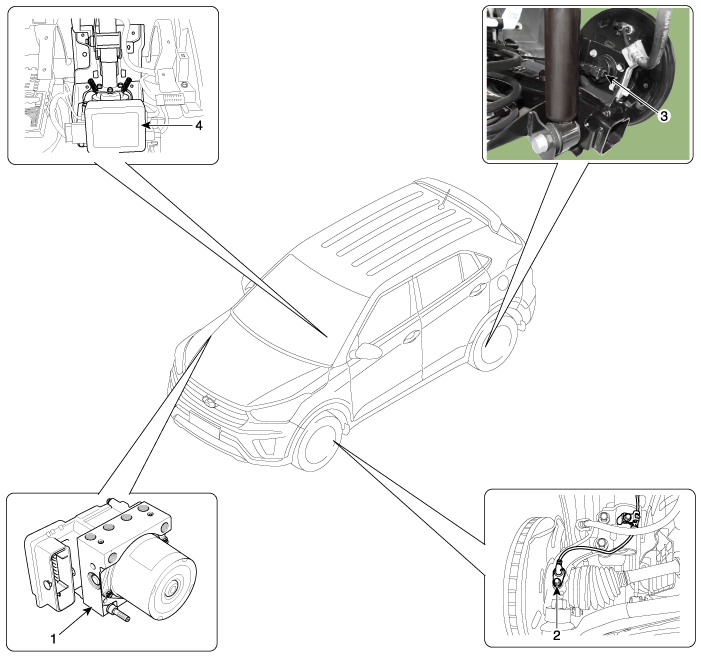

[LHD]

1. ESP control module (HECU)
2. Front wheel speed sensor

3. Rear wheel speed sensor
4. Steering angle sensor

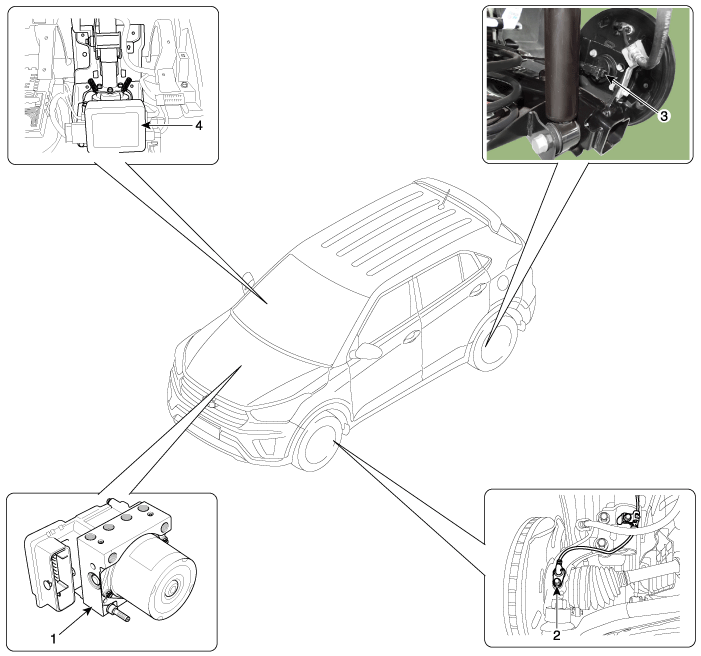

[RHD]

1. ESP control module (HECU)
2. Front wheel speed sensor

3. Rear wheel speed sensor
4. Steering angle sensor
