Hyundai Creta: Rear Door / Components and components location

Hyundai Creta GS 2014-2024 Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

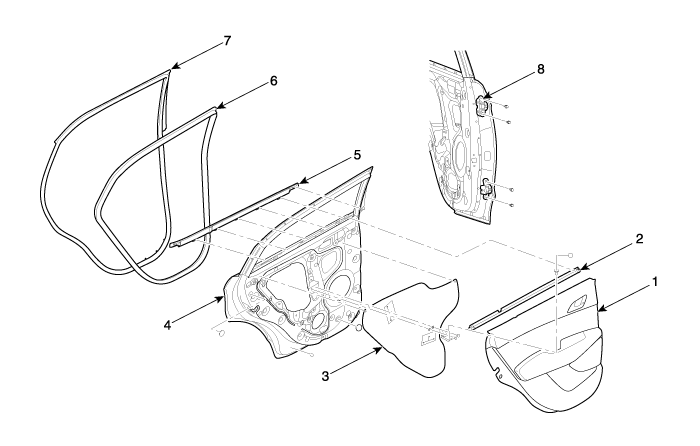

Components

1. Rear door trim
2. Rear door belt inside weatherstrip
3. Rear door trim seal
4. Rear door panel

5. Rear door belt outside weatherstrip
6. Rear door body side weatherstrip
7. Rear door side weatherstrip
8. Rear door hinge

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deteriora ...
