Hyundai Creta: Interior Trim / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Interior Trim / Components and components location

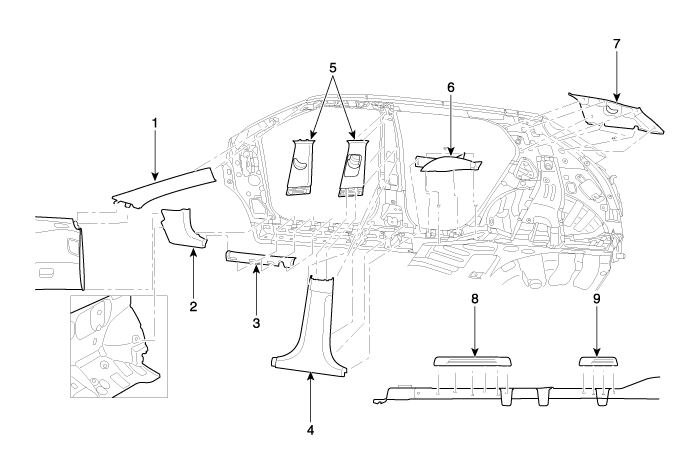

Components

1. Front pillar trim
2. Cowl side trim
3. Front door scuff trim
4. Center pillar lower trim
5. Center pillar upper trim

6. Rear door scuff trim
7. Rear pillar trim
8. Front door step trim
9. Rear door step trim

Door Scuff Trim

Components and components location Component Location 1. Front door scuff trim 2. Rear door scuff trim Repair procedures Replacement ...
