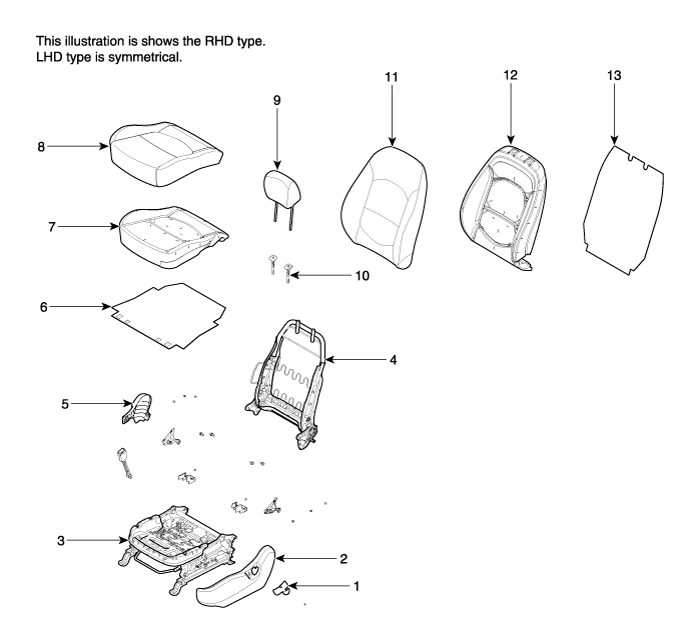

Components

1. Recliner lever
2. Front seat outer shield cover
3. Front seat cushion frame assembly
4. Front seat cushion cover
5. Front seat shield inner cover
6. Front seat cushion antinoise cover
7. Front seat cushion pad

8. Front seat cushion cover
9. Front seat headrest
10. Front seat headrest guide
11. Front seat back cover
12. Front seat back pad
13. Front seat back antinoise cover

Front Seat

...

Front Seat Assembly

Components and components location Component Location 1. Front seat assembly Repair procedures Replacement 1. Open t ...
