Components

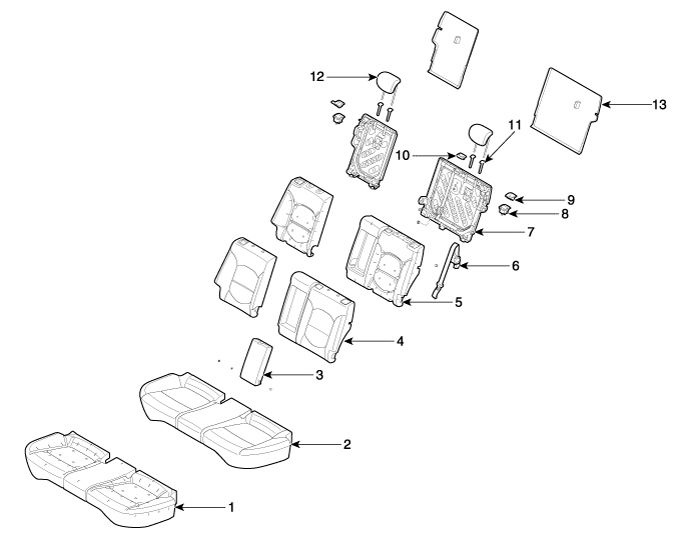

[ 6:4 Back folding type ]

1. Rear seat cushion pad
2. Rear seat cushion cover
3. Rear console armrest
4. Rear seat back cover
5. Rear seat back pad
6. Rear center seat belt retractor
7. Rear seat back frame assembly

8. Folding lever assembly
9. Folding lever bezel
10. Webbing guide
11. Rear seat headrest guide
12. Rear seat headrest
13. Rear seat carpet back panel

[ Banch seat type ]

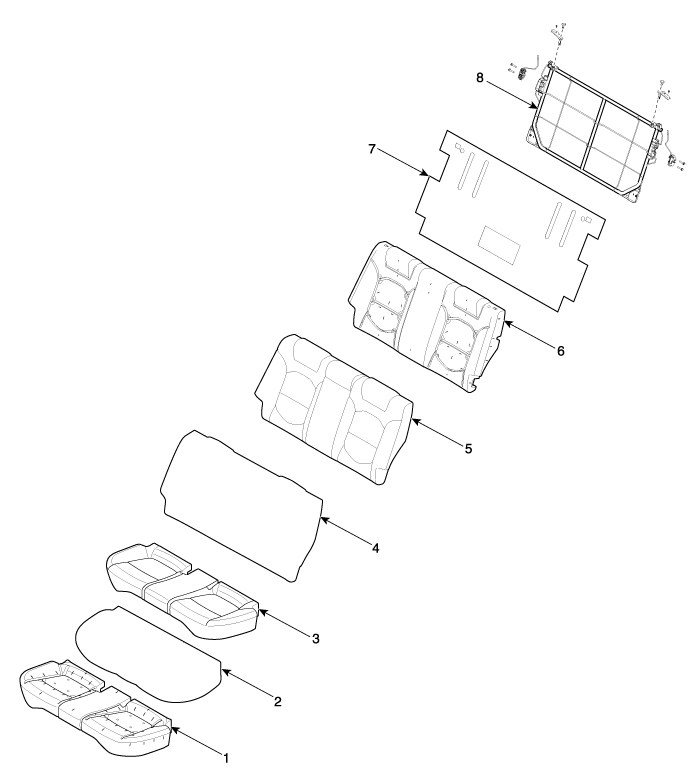

(General)

1. Rear seat cushion pad
2. Rear seat cushion dust cover
3. Rear seat cushion cover
4. Rear seat back dust cover

5. Rear seat back cover
6. Rear seat back pad
7. Rear back antinoise cover
8. Rear seat back frame

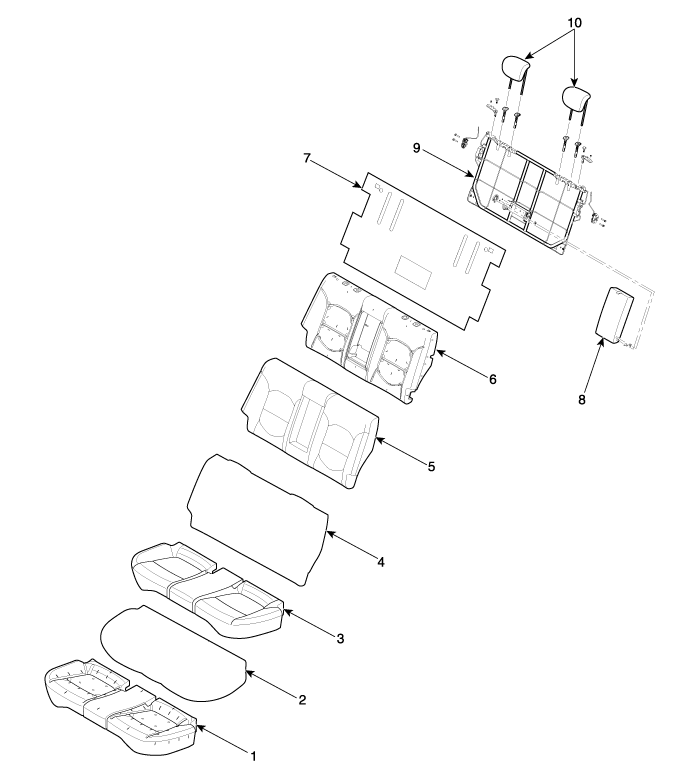

(Option)

1. Rear seat cushion pad
2. Rear seat cushion dust cover
3. Rear seat cushion cover
4. Rear seat back dust cover
5. Rear seat back cover

6. Rear seat back pad
7. Rear back antinoise cover
8. Rear seat back armrest
9. Rear seat back frame
10. Rear seat headrest
