Hyundai Creta: Front Seat Belt / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Components and components location

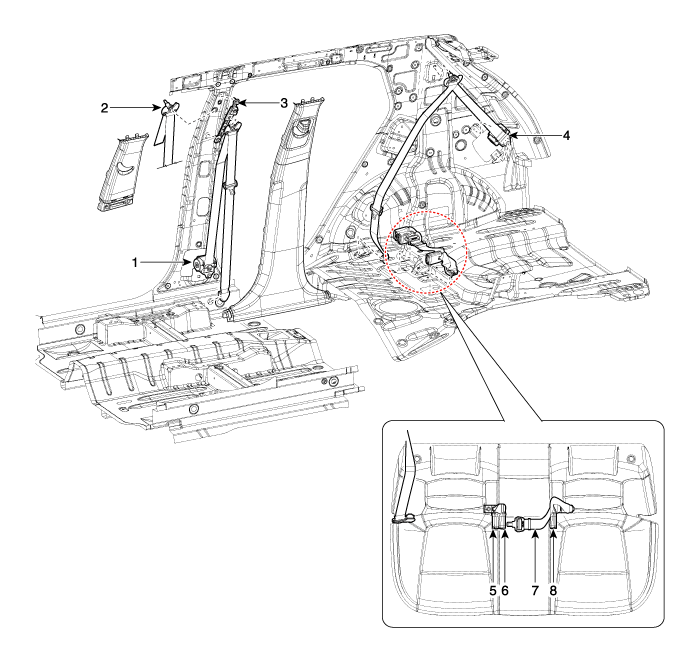

Components

1. Front seat belt retractor
2. Front seat belt upper anchor
3. Height adjuster
4. Rear seat belt retractor [RH]

5. Rear seat belt buckle [RH]
6. Rear seat belt buckle [Center]
7. Rear center seat belt
8. Rear seat belt buckle [LH]

Front Seat Belt Pretensioner

Components and components location Component Location 1. Front seat belt pretensioner Repair procedures Replacement ...
