Hyundai Creta: Horn / Components and components location

Hyundai Creta GS 2014-2024 Service Manual / Body Electrical System / Horn / Components and components location

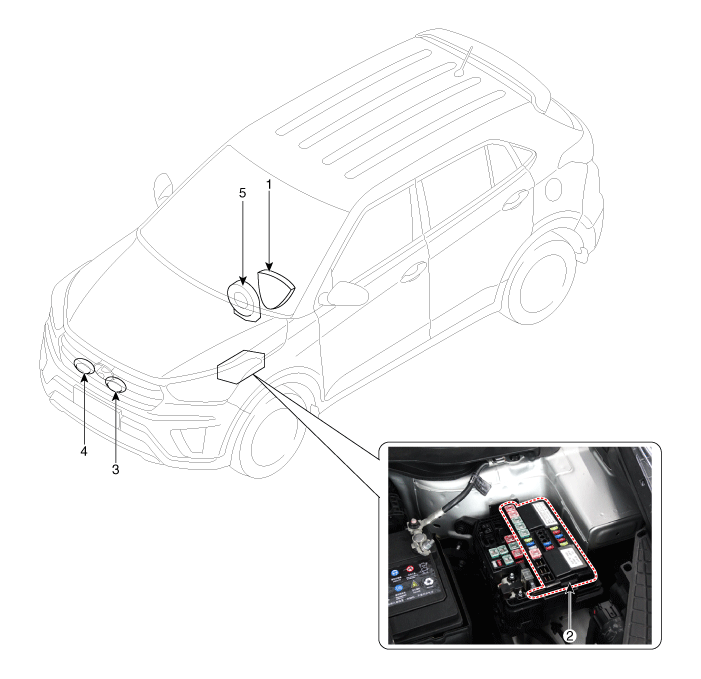

Component Location

1. Horn switch
2. Horn relay (Engine room - PCB Fuse & Relay Block)
3. Horn (Low pitch)

4. Horn (High pitch)
5. Clock spring

Repair procedures

Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. After loosening each mounting bolt of ...
