Hyundai Creta: Multifunction Switch / Components and components location

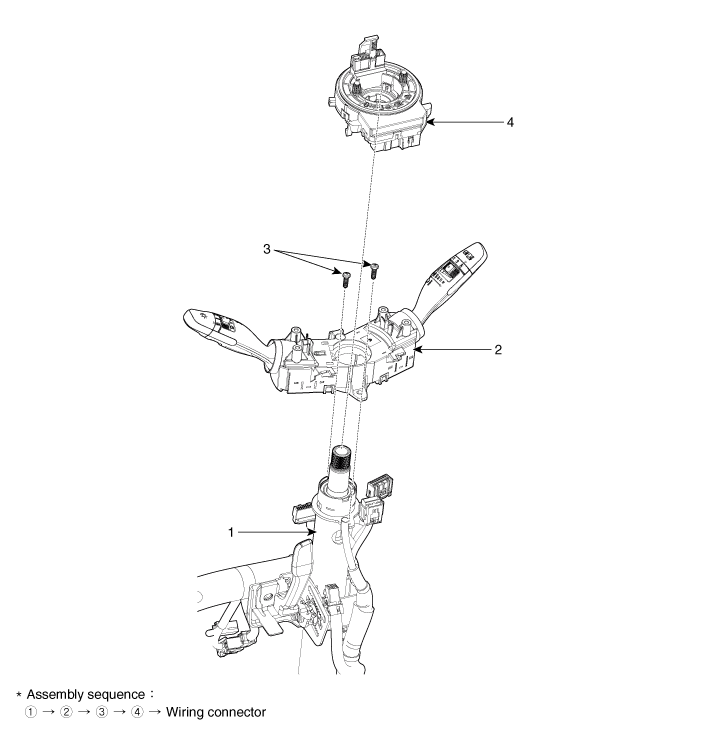

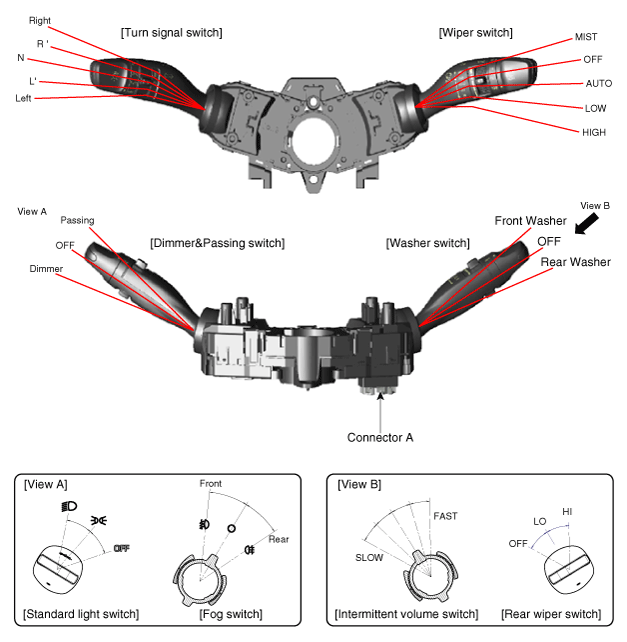

| Component |
| 1. Steering column 2. Multifunction switch |
3. Screw 4. Clock spring |
|

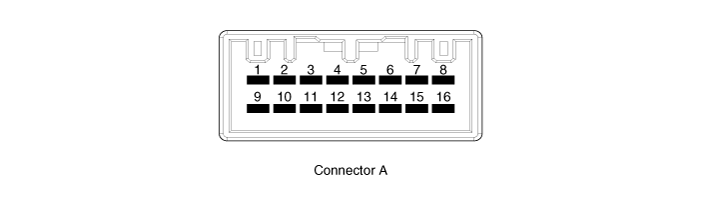

No |
Left Handle Drive Type |
Right Handle Drive Type |
|
1 |
Front wiper switch signal |
Front washer switch |
|
2 |
Front wiper low back signal |
Front Wiper intermittent volume switch |
|
3 |
- |
Front wiper switch signal |
|
4 |
Rear washer switch |
- |
|
5 |
- |
- |
|
6 |
Front washer switch |
Front wiper low back signal |
|
7 |
Front Wiper intermittent volume switch |
IGN2 |
|
8 |
IGN2 |
Rear washer switch |
|
9 |
GND |
Rear wiper switch |
|
10 |
Foglamp switch |
Headlamp low backup signal |
|
11 |
GND |
Light switch |
|
12 |
Turnsignal switch |
Headlamp high switch signal |
|
13 |
Headlamp high switch signal |
Turnsignal switch |
|
14 |
Light switch |
Foglamp switch |
|
15 |
Headlamp low backup signal |
GND |
|
16 |
Rear wiper switch |
GND |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12V
Operating temperature range
-22 ~ +176°F (-3 ...
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel.
(Refer to Steering System - "Steering W ...
