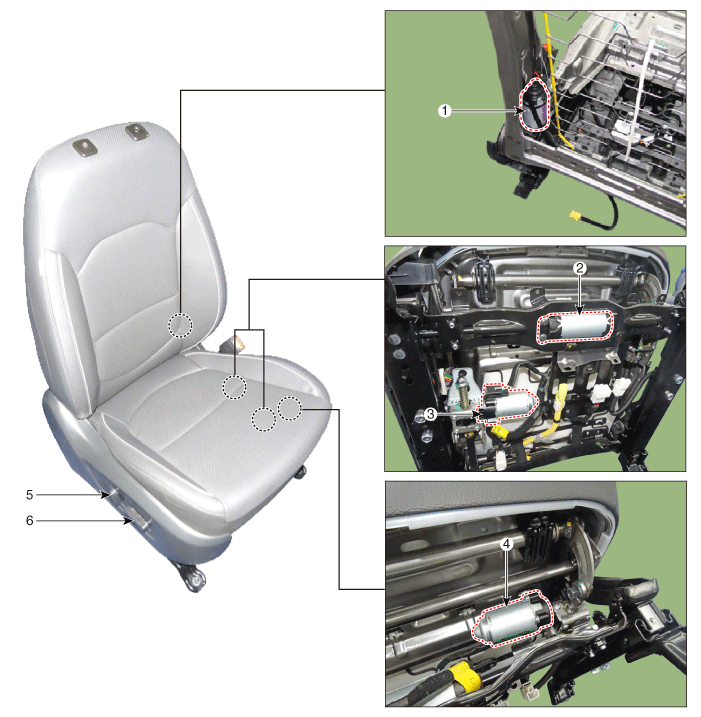

Component Location

1. Reclining motor
2. Slide motor
3. Rear height motor

4. Front tilt motor
5. Seat back switch (reclining)
