Hyundai Creta: Power Windows / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Power Windows / Components and components location

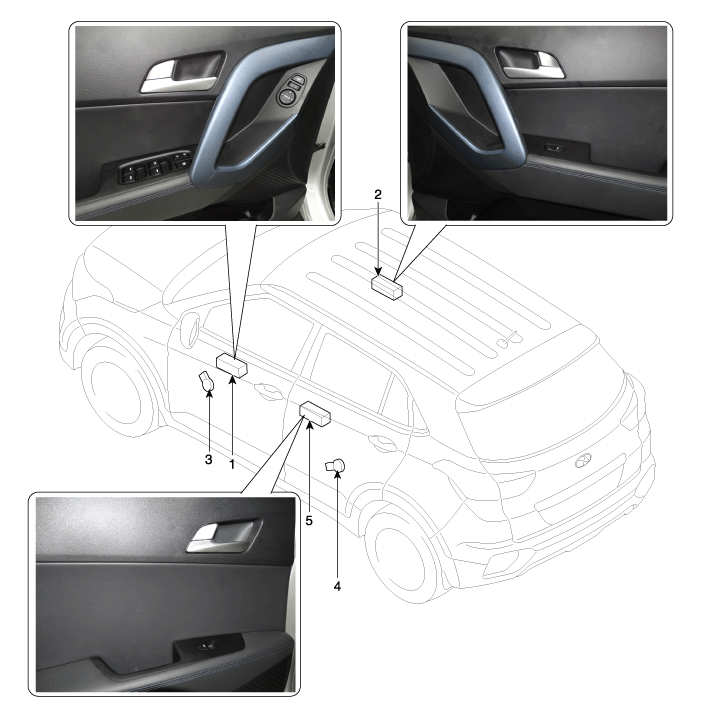

Component Location

1. Drive power window main switch
2. Passenger power window main switch
3. Front window motor

4. Rear window motor
5. Rear window switch

Description and operation

Function of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition ...
