Hyundai Creta: Rear Wiper/Washer / Components and components location
Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Rear Wiper/Washer / Components and components location

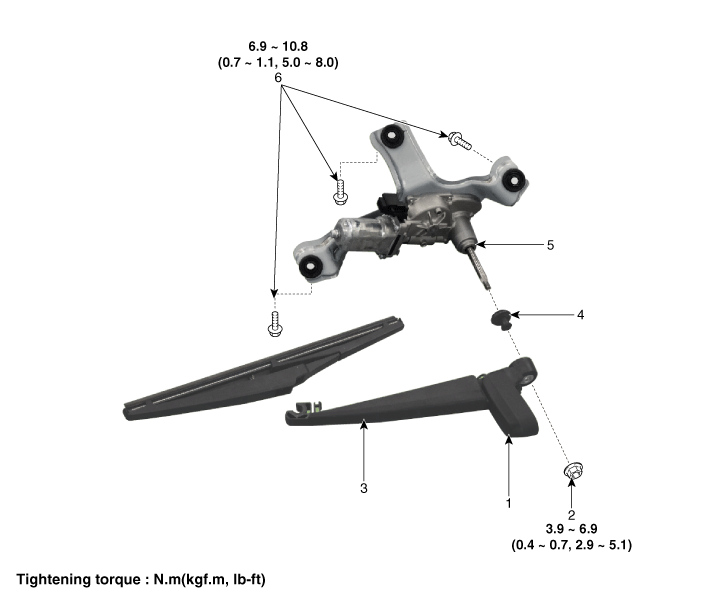

| Component Location |
| 1. Head cap 2. Rear wiper arm nut 3. Rear wiper arm & blade |
4. Grommet 5. Rear wiper motor assembly 6. Rear wiper motor bolt |
Rear Wiper Motor: Repair procedures
Inspection
Rear Wiper Motor
1.
Operate the wiper switch to check for continuity between wiper motor
terminals
No
...
