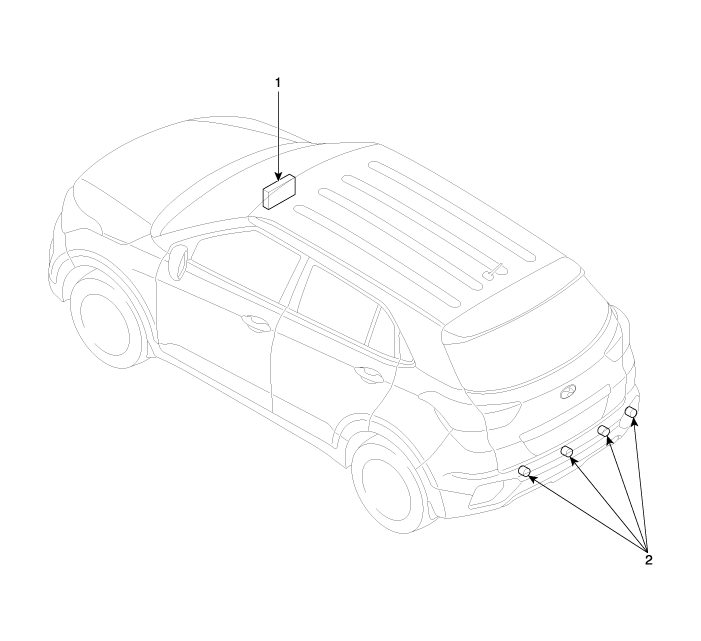

Component Location

1. BCM (Body Control Module)

2. Ultrasonic sensor

※ Rear parking assist control unit function is built in BCM (body control unit).

Specifications

Specification Item Specification Ultrasonic sensor Voltage rating DC 12 V Detecting range 3 ...

Description and operation

System Overview RPAS(Rear Parking Assist System) is an electronic driving aid device warning driver to be cautious when they park or speed low after detecting an object on side a ...
