Hyundai Creta: Back View Camera System / Components and components location

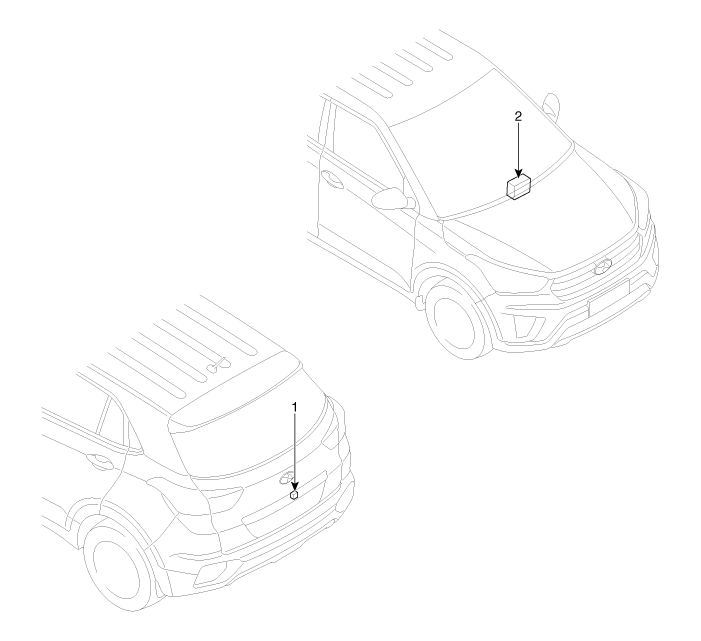

Component Location

1. Back view camera
2. AV Head unit (Reverse Display)

Back View Camera System
...

Schematic diagrams
Circuit Diagram ...
